50km GNSS Receiver 4G Fixed Network Station
Stars,100% Recommend

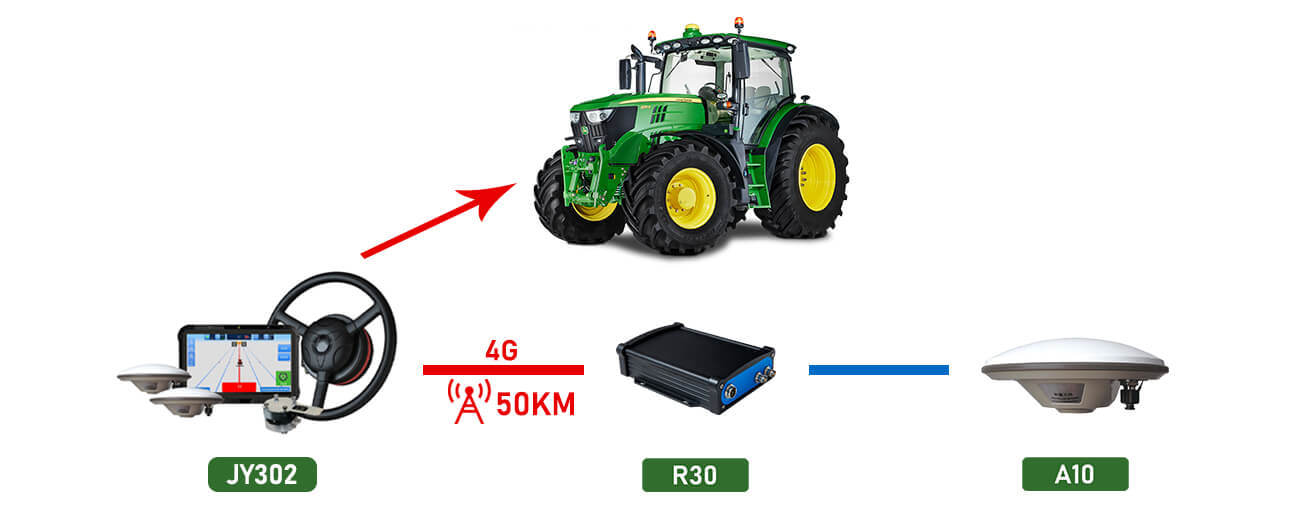

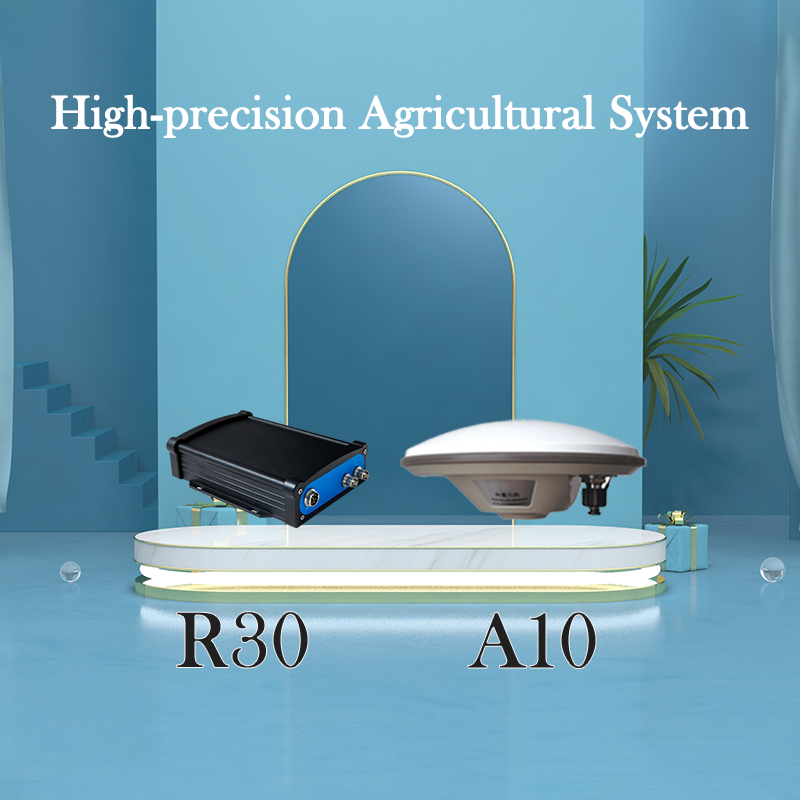

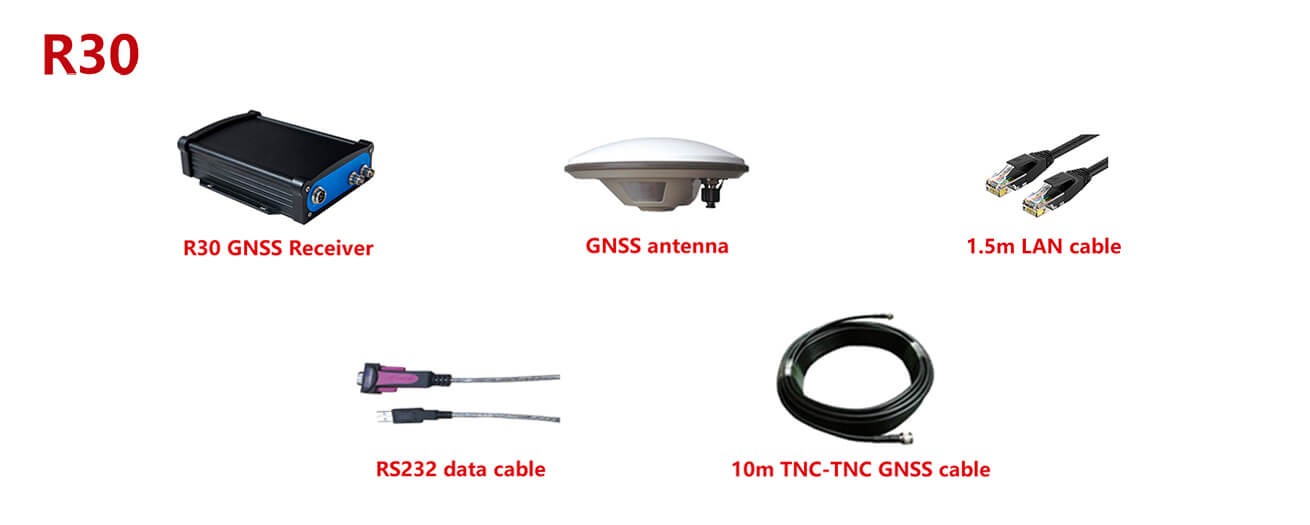

R30 4G fixed network station and A10 GNSS Antenna (50 km Signal Range)
Use with JY302
- Benefit
- Specification
- Download
- Reviews
R30:
The R30 receiver is a GNSS receiver designed to provide Ag and MC professionals with maximum features and flexibility. The receiver’s compact form factor,
powerful feature set make for an ideal combination supporting a wide range of high-accuracy positioning applications, including: RTK rover；
mobile field base station；post processed data collection.
A10:
A10 is a four-system full-frequency external measurement antenna covering GPS, GLONASS, BDS, and GALILEO, which meets the multi-system compatibility
requirements of current measurement equipment. It can be widely used in geodetic surveying, ocean surveying, channel surveying, dredging surveying, seismic
monitoring, bridge deformation monitoring, landslide monitoring, terminal container operation and other occasions.
R30 GNSS Receiver
The SMAJAYU R30 receiver is a GNSS receiver designed to provide Ag and MC professionals with maximum features and flexibility.
The receiver’scompact form factor, powerful feature set make for an ideal combination supporting a wide range of
high-accuracy positioning applications, including: RTK rover；mobile field base station；post processed data collection.
Product Features
The receiver’s compact form factor, powerful feature set make for an ideal combination supporting a wide range of high-accuracy
positioning applications, including: RTK rover；mobile field base station；post processed data collection.
*Available with internal radio or no radio;
*Available with integrated 3G or without it,
*Standard Ethernet communication interface is convenient to data high-speed network transmission;
*Can be configured as base station or mobile station to support a variety of operating modes.
*High-precision positioning boards of different sizes can be built in as needed, which can realize single Beidou solution;
*Built-in integrated wireless communication module;
*Inertial integrated navigation enriches RTK high-precision application scenarios;
*The built-in 4G full Net module can seamlessly connect to CORS systems in various places;
*Standard Ethernet communication interface, convenient for data transmission
*Support 9-36V DC wide voltage power supply
*Support remote diagnosis and remote setting, which is convenient for users to maintain the equipment remotely and reduces user service costs
*Multiple indicator lights, the digital tube displays the host status, the operation is simple and intuitive
A10 GNSS Antenna
A10 is a four-system full-frequency external measurement antenna covering GPS, GLONASS, BDS, and GALILEO, which meets the multi-system compatibility requirements of
current measurement equipment.It can be widely used in geodetic surveying, ocean surveying, channel surveying, dredging surveying, seismic monitoring,
bridge deformation monitoring, landslide monitoring, terminal container operation and other occasions.
A10 Feature
Support GNSS four-system full-band signal
Stable phase center guarantees the accuracy of positioning within millimeter-level
Strong anti-interference ability to endure the harshest operating environments
P67 ruggedized protection
