R61 4G RTK Base

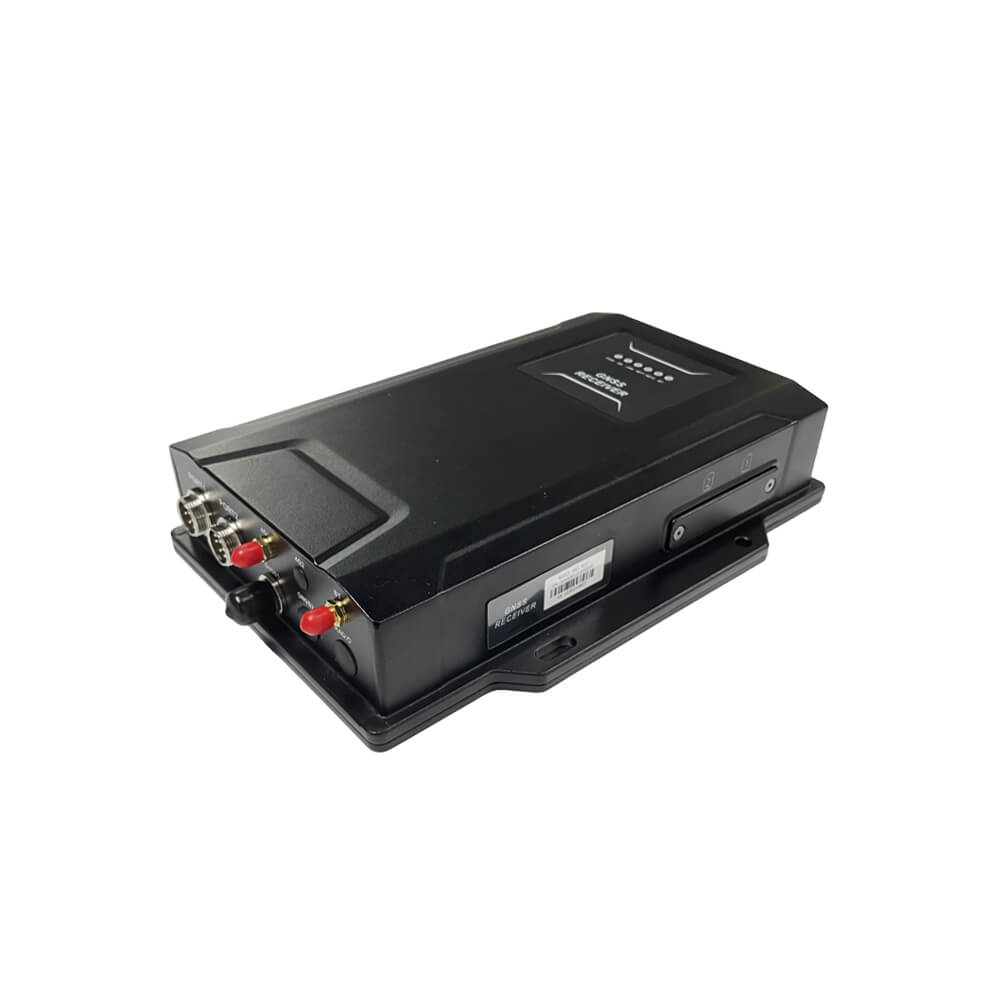

What is a R61 GNSS receiver

R61 GNSS receiver is a multi-functional Beidou/GNSS network reference station dedicated receiver independently developed by SMAJAYU. It has built-in Beidou/GNSS

high-precision boards, dual 4G full Netcom network modules, Bluetooth modules, etc., to achieve wired Internet and dual 4G wireless networks. The seamless switching

of the greatly increases the stability of the network transmission of the network reference station.

R61 GNSS receiver Beidou/GNSS network reference station receiver is mainly used for various network base stations, CORS base stations, Beidou ground-based

augmentation network, monitoring system, etc., can be used for Beidou ground-based augmentation network, CORS, precision agriculture, surveying

and mapping, intelligent transportation, Man-machine, construction machinery and other industries.

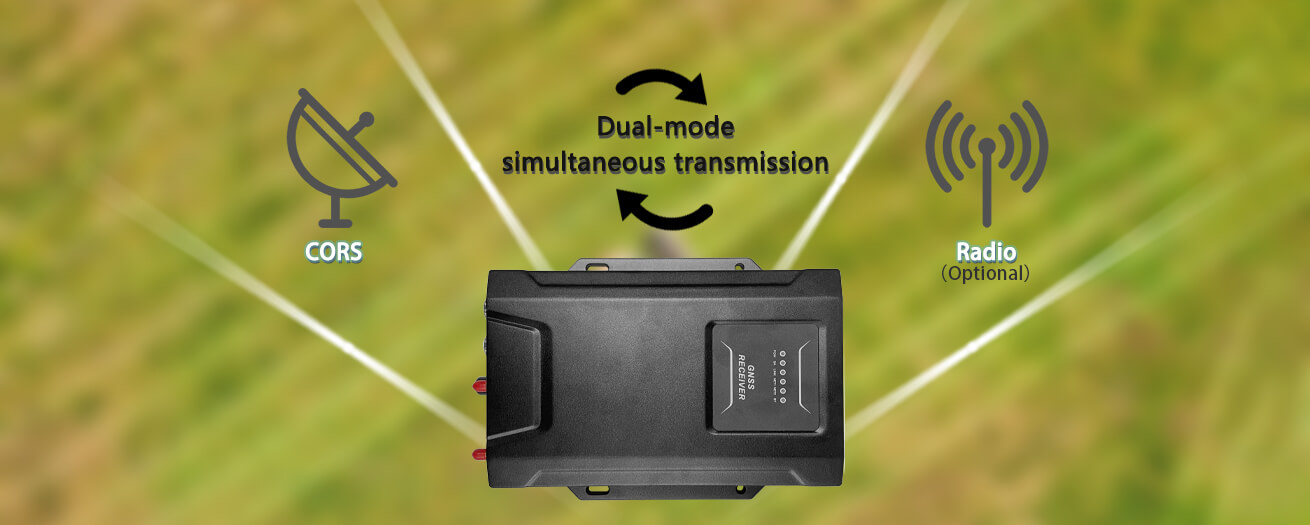

Support CORS and Radio dual-mode simultaneous transmission

Product Advantage

• Built-in Beidou/GNSS multi-system multi-frequency high-precision board
• With positive and negative polarity reverse connection protection, wide voltage power supply, voltage range between DC9-36V
• The receiver can realize the switching between the network base station and the radio base station, and can also be used as a mobile station
• Standard Ethernet communication interface, convenient for high-speed network transmission of data
• Can be remotely upgraded and remotely set
• Dual cloud network servers to ensure continuous operation of the server and never disconnect from the network

The host provides Ethernet, WIFI, RS232 serial, Bluetooth and dual- mobile network interfaces for customers to choose.
