R26 V1 RTK Rover
$1,621.00
Stars,100% Recommend
R26 V1 Rover GNSS Surveying Rover with LP80 Collector R26 RTK Receiver NOAA certificated,Static Survey,RTK Survey for Topographic Survey,Land Survey, Correction by CORS,Mobile Base,TCPIP..
- Benefit
- Specification
- Download
- Reviews
Go to Amazon Store to Buy
Go Amazon store to buy R26 v1 rover+base

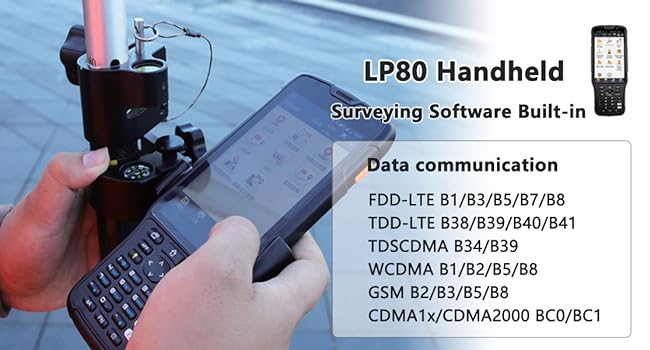

Handheld LP80
Full constellation, GNSS Performance

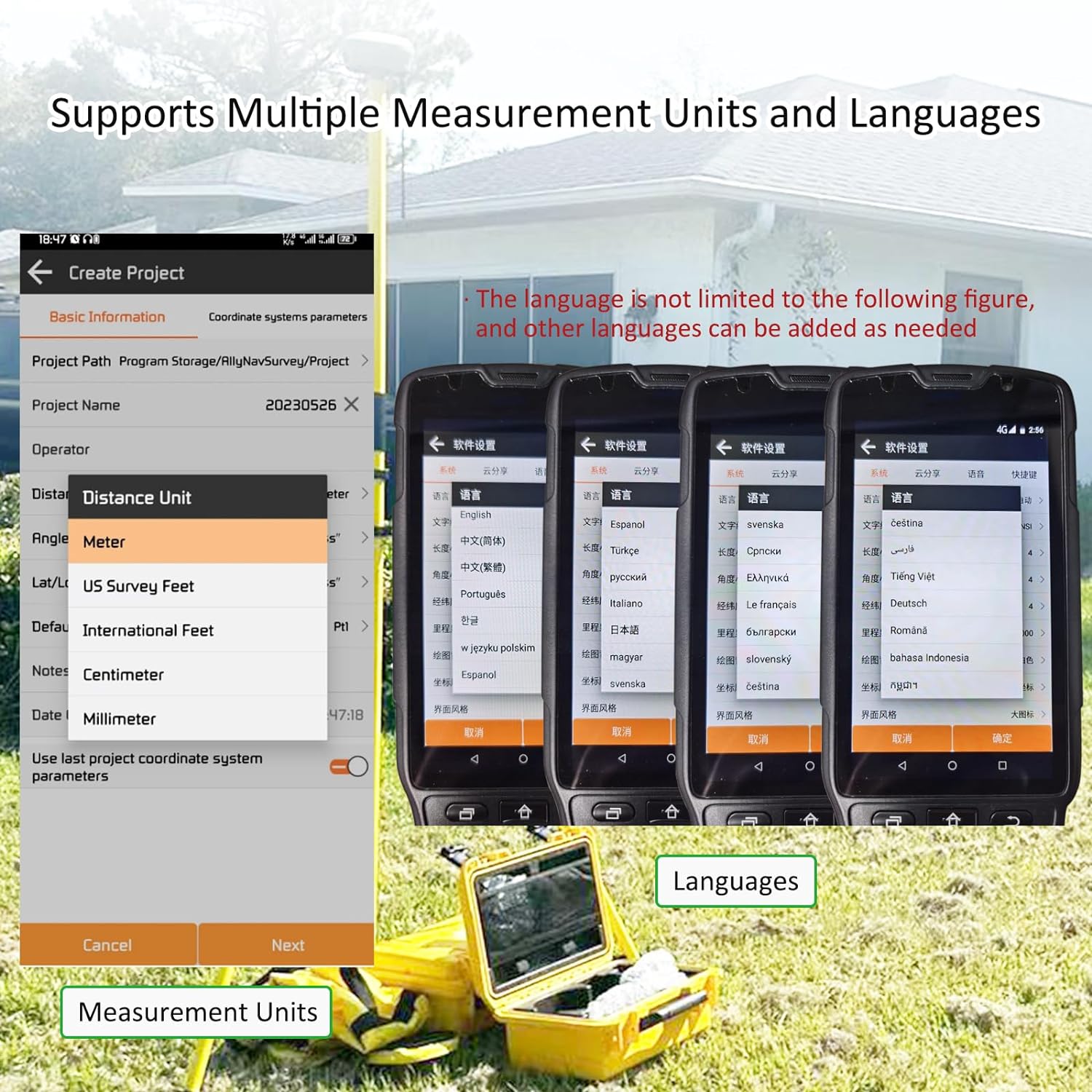

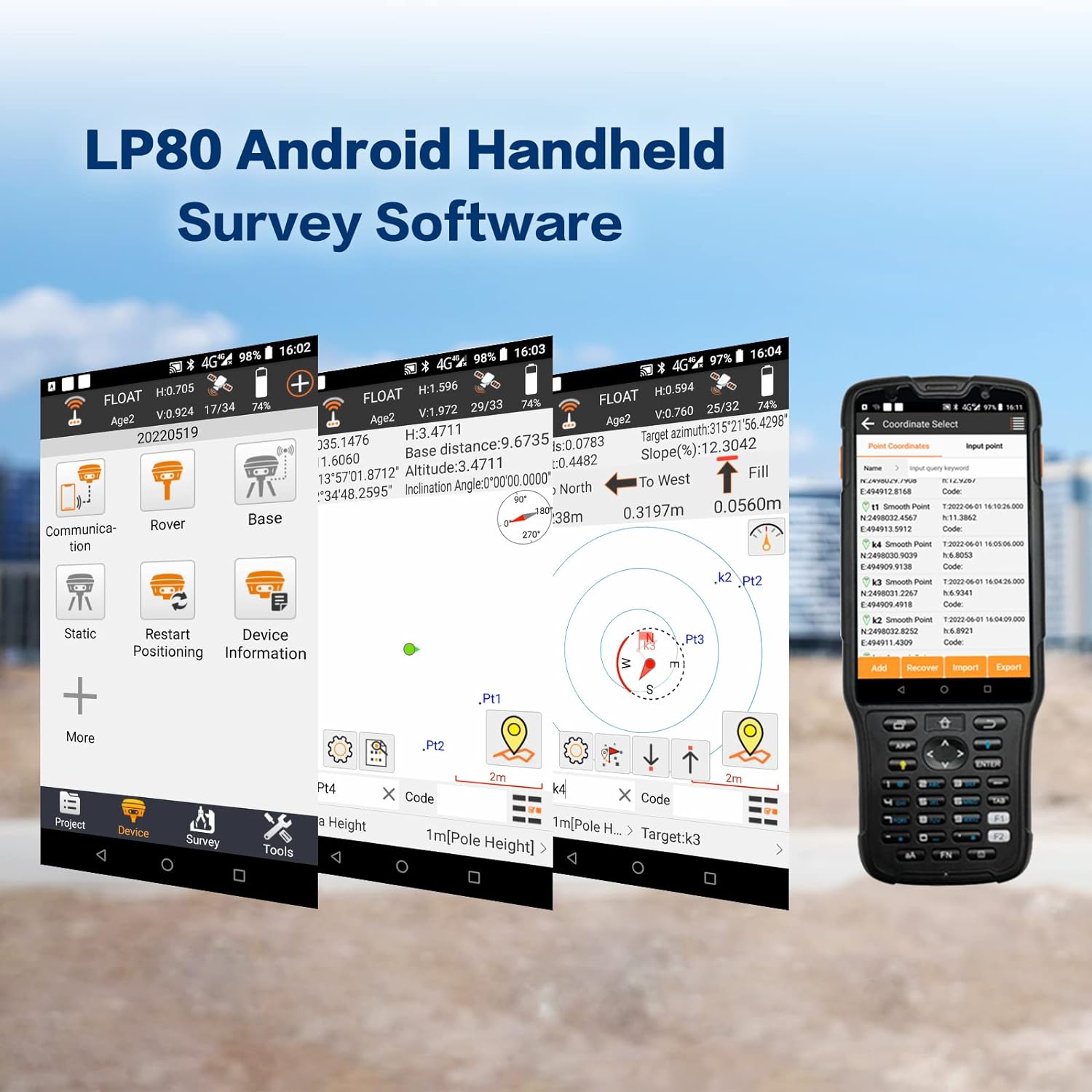

Built-in Surveying Software
Satellite Frequency Band

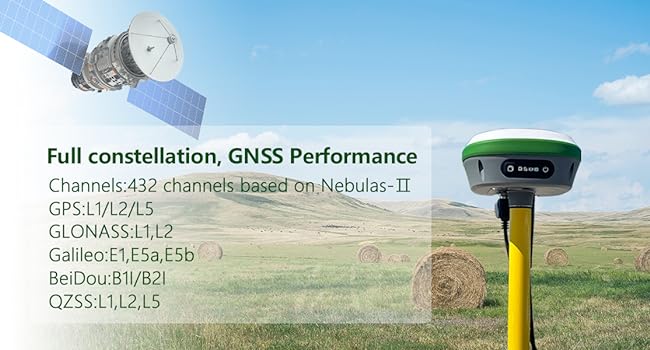

Full constellation, GNSS Performance
Survey Steps
What can do with this component:
(A bundle with R26 base station recommended for Surveying)
Field data survey, Point survey, Fragmentation survey, Control point survey, Point Stakeout, CAD, Straight line setting out, DSM Stakeout, Stake Road and other functions

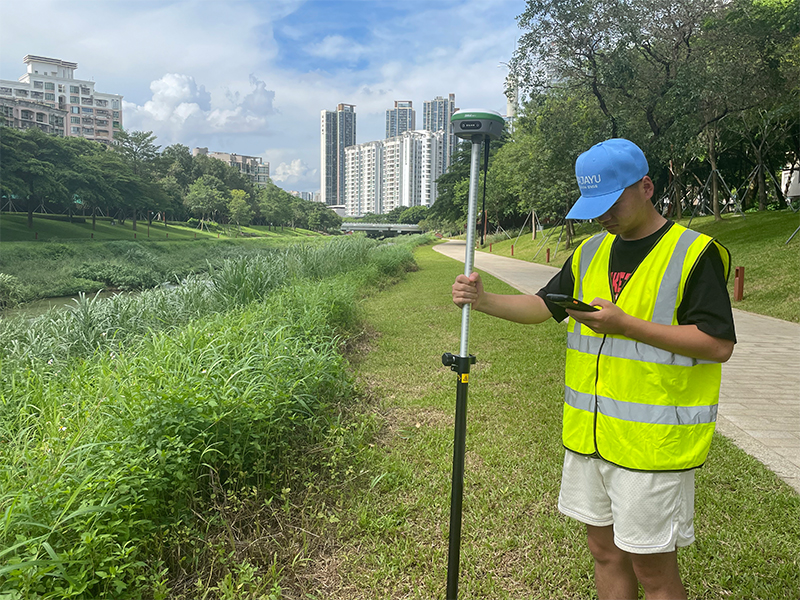

Real Measurement Experiment
Conclusion of environmental test:
-
Please Surveying in a open place without block! RTK can usually be fixed if Rover in an open place without block, and RTK is float in places where there are trees or buildings that block the signal and the signal is not good.
2.Surveying with Both Rover and Base can make sure 1-2cm precision.

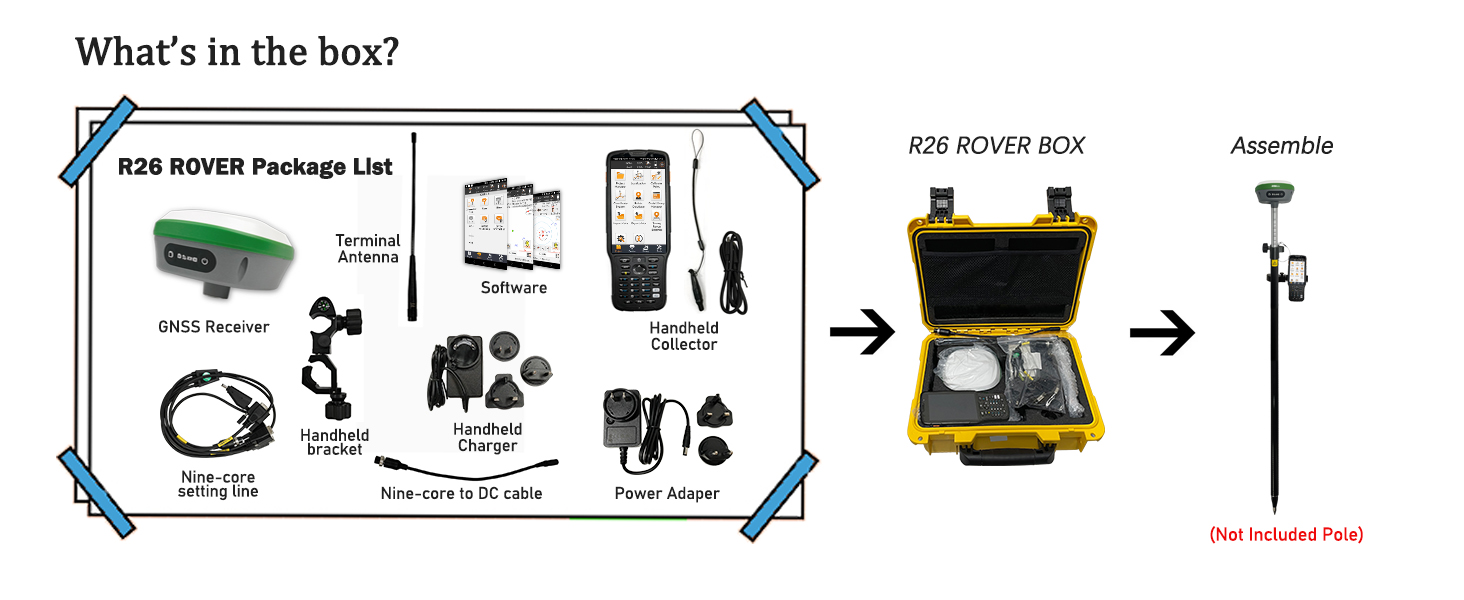

What's in the box?
R26 GNSS IMU RECEIVER
The R26 GNSS receiver removes barriers to portability without sacrific-ing performance. Featuring full GNSS technology, it offers best-in-class GNSS signal tracking
even in a harsh environment, enabling GNSS surveying beyond usual constraints. The R26 GNSS incorporates the latest innovations such as an inertial module
providing automatic pole- tilt compensation in a very compact design.
ENABLE GNSS RTK ANYTIME, ANYWHERE
Full constellation , Strong battery life , RTK+IMU
THE POWER OF GNSS+IMU RTK TECHNOLOGY
Built-in inertial navigation module, you can measure it when you click it. As long as the pole point is aligned, the precise coordinates can be measured even if the pole body is tilted. The measuring point efficiency is increased by 20%, and the staking efficiency is increased by 30%.

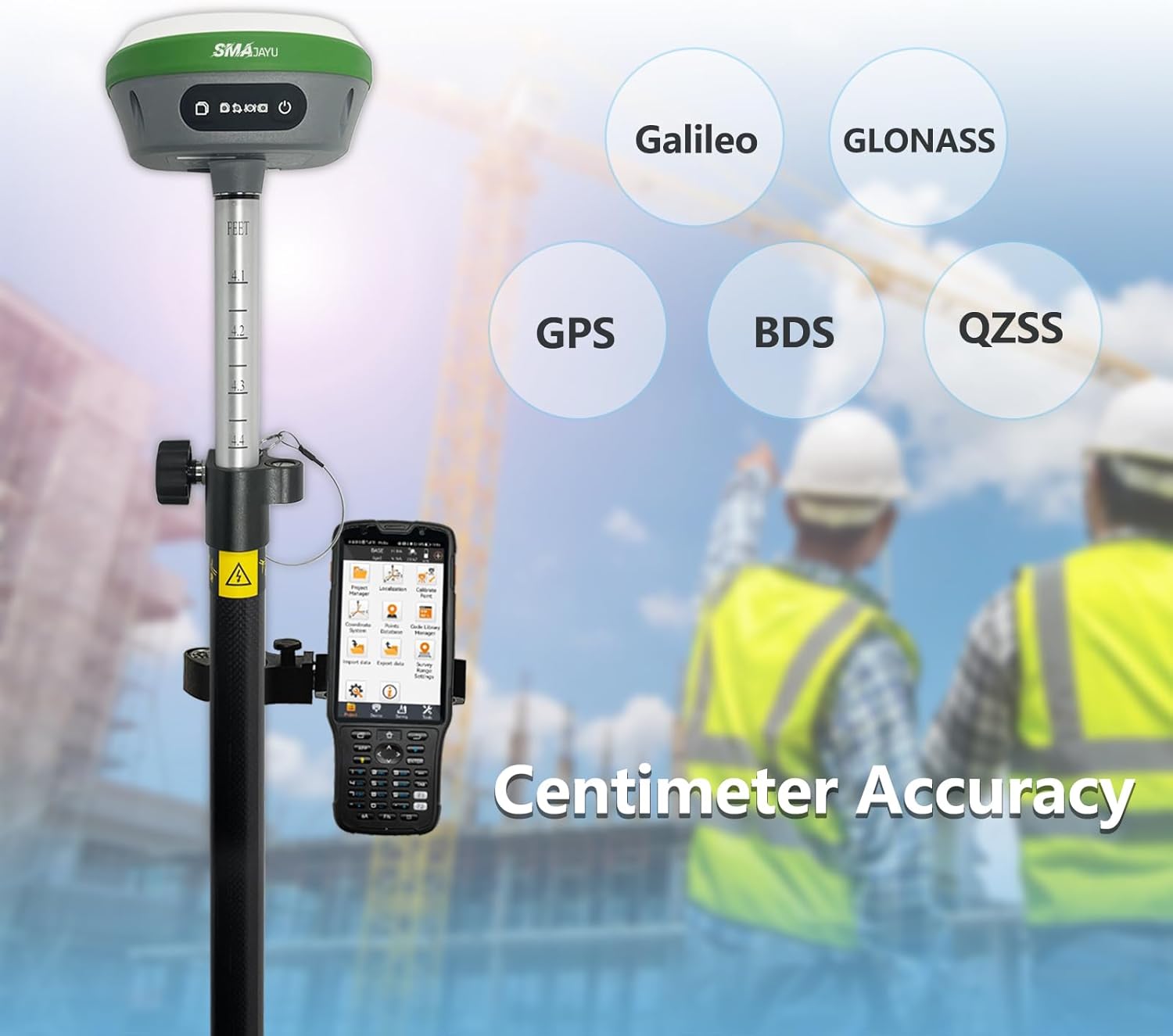

FULL CONSTELLATION MULTI-BAND
Fully support BDS, GPS, GLONASS, Galileo systems, adapt to a variety of complex and harsh environments, and ensure centimeter-level positioning accuracy.
ALL-IN-ONE DESIGN
Built-in Bluetooth, radio, storage, positioning, inertial navigation, antenna and other modules to meet various needs of measurement work.
LARGE CAPACITY AND LONG BATTERY LIFE
Built-in battery with a capacity of up to 10000mAh, which can achieve more than 14 hours of continuous battery life, ensuring long-term operation in harsh outdoor environments.
BUILT-IN UHF RADIO
Built-in low-power transceiver integrated radio module, which can realize automatic switching between mobile station and base station.
STRONG COMPATIBILITY
Adapt to transparent, TRIMTALK, South and so on ,multiple communication protocols.
CAN BE EXTENDED TO DUAL ANTENNAS
Built-in integrated positioning and heading board, can be connected with an external antenna, to achieve high-precision heading applications.
TWO OPERATING MODES INTERCHANGE
Base station mode and rover mode can be switched freely according to needs.
Technical Feature
- Small volume and high integration, the system can integrate large capacity battery, inertial navigation
module, GNSS antenna, satellite positioning module, Bluetooth, radio module, storage module, etc.;
- High precision and low power consumption, using Beidou, GPS, GLONASS, Galileo, QZSS and other
multi-system multi-frequency system, in a variety of positioning, to ensure the accuracy of complex environment;
- Support wide voltage 9~36V DC power supply, with positive and negative polarity reverse connection
protection function;
- Standard IP67 waterproof and dustproof design;
- Built-in Bluetooth module, compatible with 2.0 and 4.0, can send differential data;
- Measurement software can realize CORS connection, measuring lofting and other functions;
- Built-in integrated radio module supports various communication protocols, such as CSS (Lora)
protocol; the maximum transmission power is 2W, can realize the maximum 5 km data communication;
- Built-in inertial navigation module, fast calibration, to achieve the inertial navigation RTK function, used
for tilt measurement;
- The base station and the mobile station can be interchangeable, and can be used as a base station or
as a mobile station mapping;
- Built-in 8G large-capacity memory card, can be real-time storage of job data.
-
