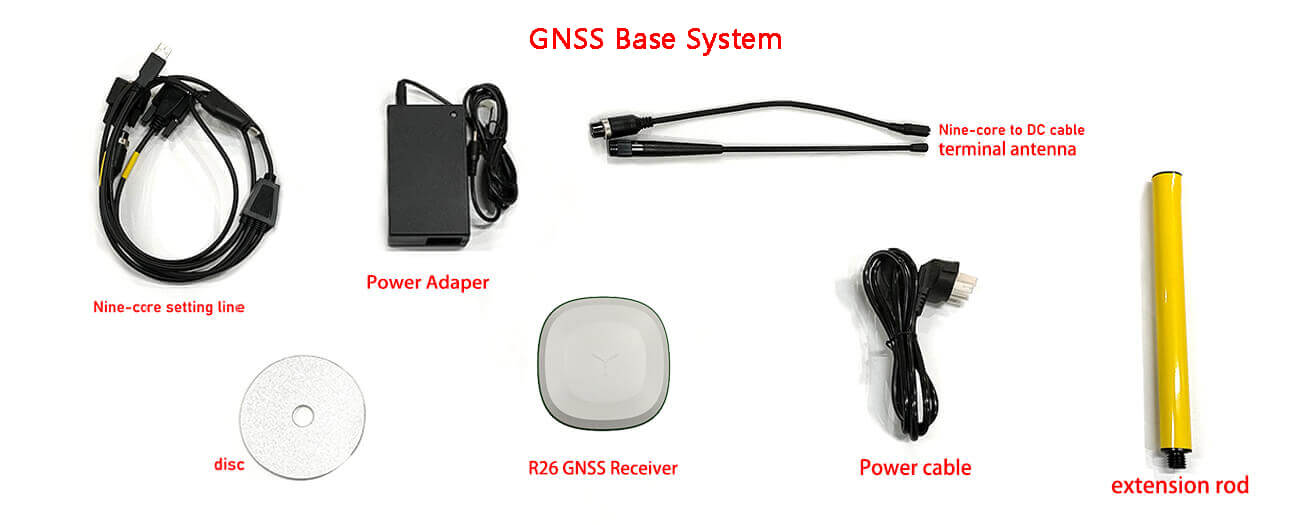

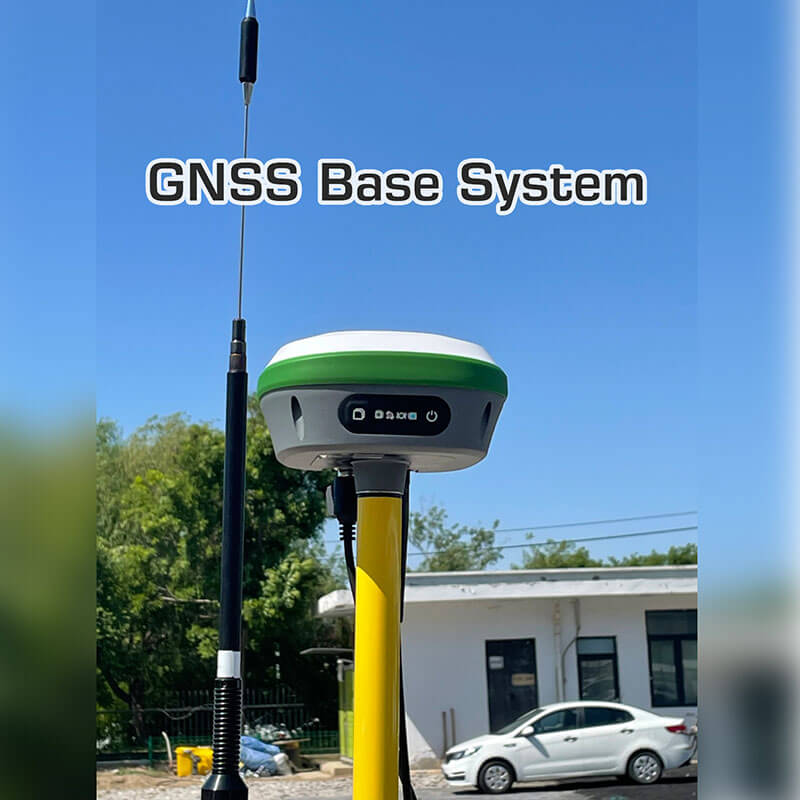

R26 Surveying Base

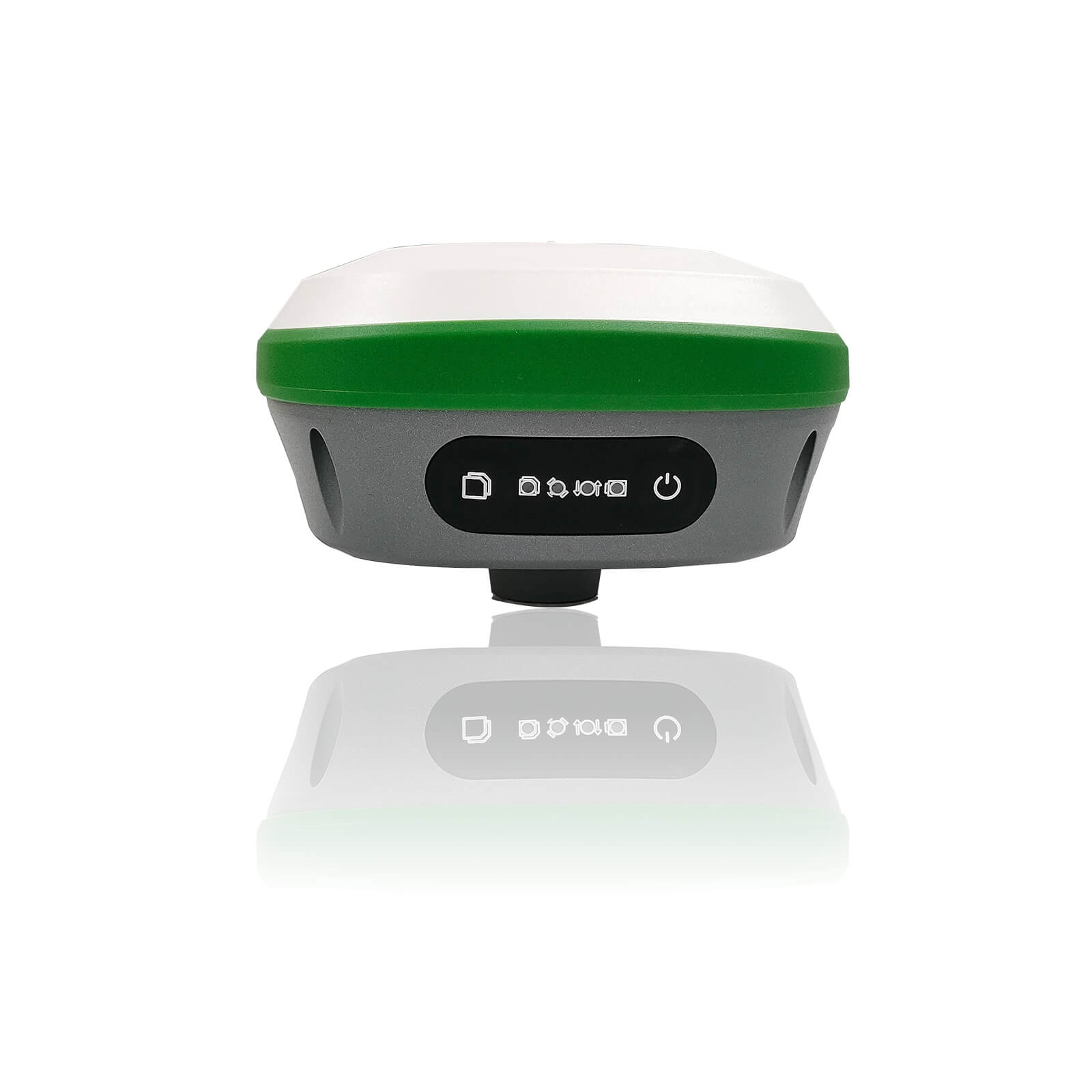

R26 GNSS IMU RECEIVER

The R26 GNSS receiver removes barriers to portability without sacrific-ing performance. Featuring full GNSS technology, it offers best-in-class GNSS signal tracking

even in a harsh environment, enabling GNSS surveying beyond usual constraints. The R26 GNSS incorporates the latest innovations such as an inertial module

providing automatic pole- tilt compensation in a very compact design.

ENABLE GNSS RTK ANYTIME, ANYWHERE

Full constellation , Strong battery life , RTK+IMU

THE POWER OF GNSS+IMU RTK TECHNOLOGY

Built-in inertial navigation module, you can measure it when you click it. As long as the pole point is aligned, the precise coordinates can be measured even if the pole body is tilted. The measuring point efficiency is increased by 20%, and the staking efficiency is increased by 30%.

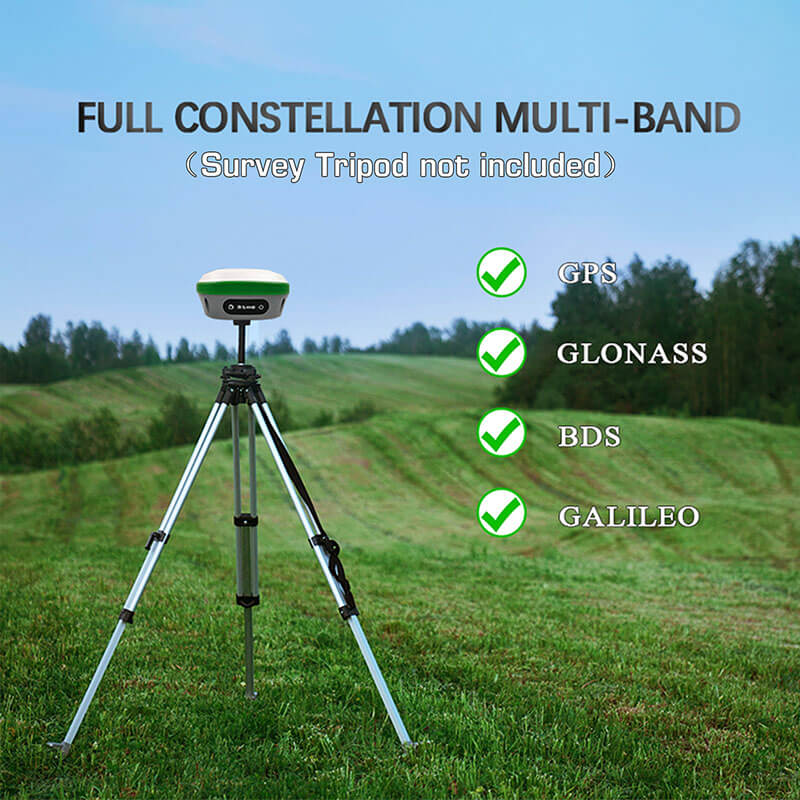

FULL CONSTELLATION MULTI-BAND

Fully support BDS, GPS, GLONASS, Galileo systems, adapt to a variety of complex and harsh environments, and ensure centimeter-level positioning accuracy.

ALL-IN-ONE DESIGN

Built-in Bluetooth, radio, storage, positioning, inertial navigation, antenna and other modules to meet various needs of measurement work.

LARGE CAPACITY AND LONG BATTERY LIFE

Built-in battery with a capacity of up to 10000mAh, which can achieve more than 14 hours of continuous battery life, ensuring long-term operation in harsh outdoor environments.

BUILT-IN UHF RADIO

Built-in low-power transceiver integrated radio module, which can realize automatic switching between mobile station and base station.

STRONG COMPATIBILITY

Adapt to transparent, TRIMTALK, South and so on ,multiple communication protocols.

CAN BE EXTENDED TO DUAL ANTENNAS

Built-in integrated positioning and heading board, can be connected with an external antenna, to achieve high-precision heading applications.

TWO OPERATING MODES INTERCHANGE

Base station mode and rover mode can be switched freely according to needs.

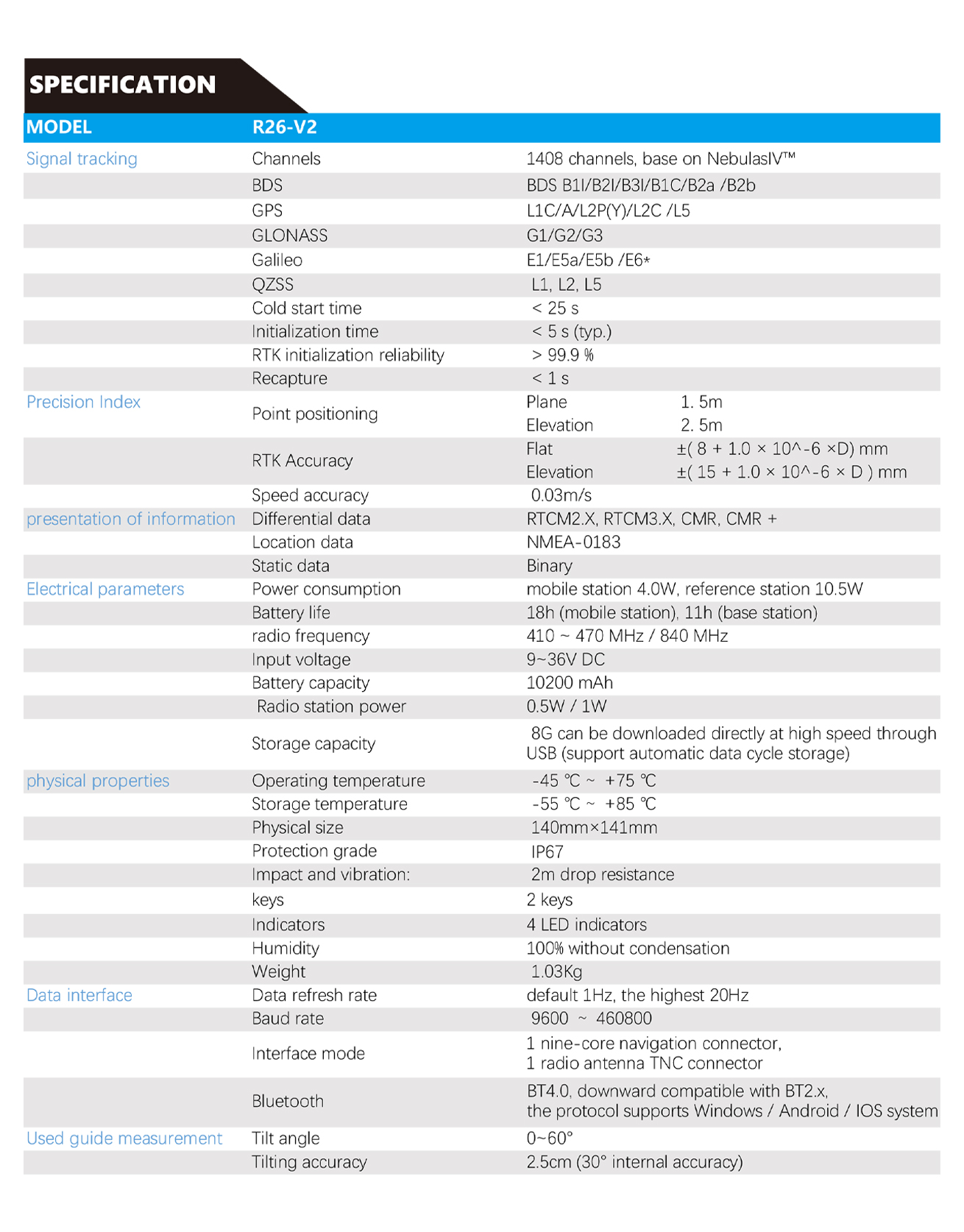

Technical Feature

• Small volume and high integration, the system can integrate large capacity battery, inertial navigation

module, GNSS antenna, satellite positioning module, Bluetooth, radio module, storage module, etc.;

• High precision and low power consumption, using Beidou, GPS, GLONASS, Galileo, QZSS and other

multi-system multi-frequency system, in a variety of positioning, to ensure the accuracy of complex environment;

• Support wide voltage 9~36V DC power supply, with positive and negative polarity reverse connection

protection function;

• Standard IP67 waterproof and dustproof design;

• Built-in Bluetooth module, compatible with 2.0 and 4.0, can send differential data;

• Measurement software can realize CORS connection, measuring lofting and other functions;

• Built-in integrated radio module supports various communication protocols, such as CSS (Lora)

protocol; the maximum transmission power is 2W, can realize the maximum 5 km data communication;

• Built-in inertial navigation module, fast calibration, to achieve the inertial navigation RTK function, used

for tilt measurement;

• The base station and the mobile station can be interchangeable, and can be used as a base station or

as a mobile station mapping;

• Built-in 8G large-capacity memory card, can be real-time storage of job data.
