D30 External Radio 20km


Stars,100% Recommend

D30 protocol support SOUTH/TRIMTALK/ TRANSEOT(PCC ).It could use for the field of precision agriculture, surveying, geographic information and Drone RTK communication.

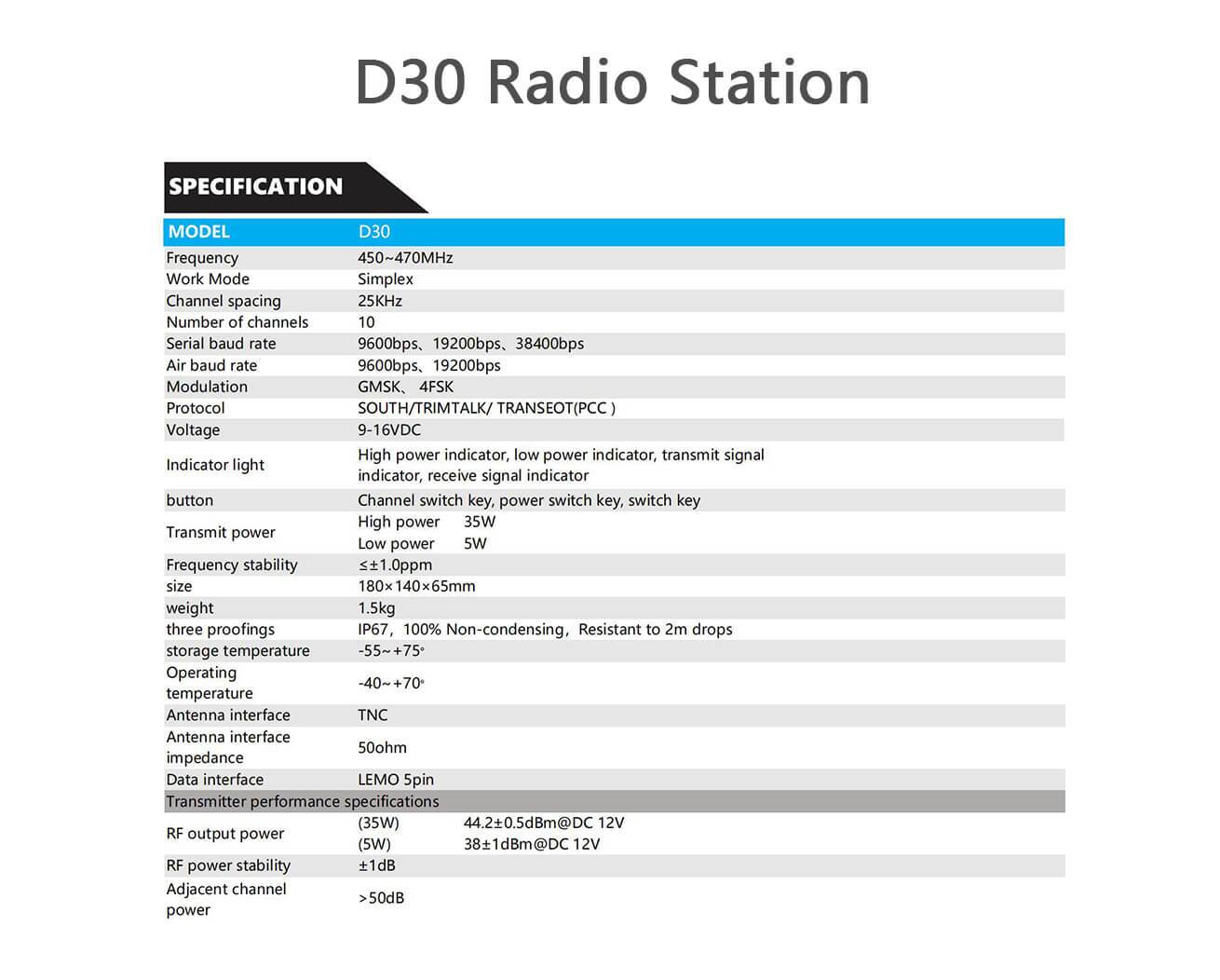

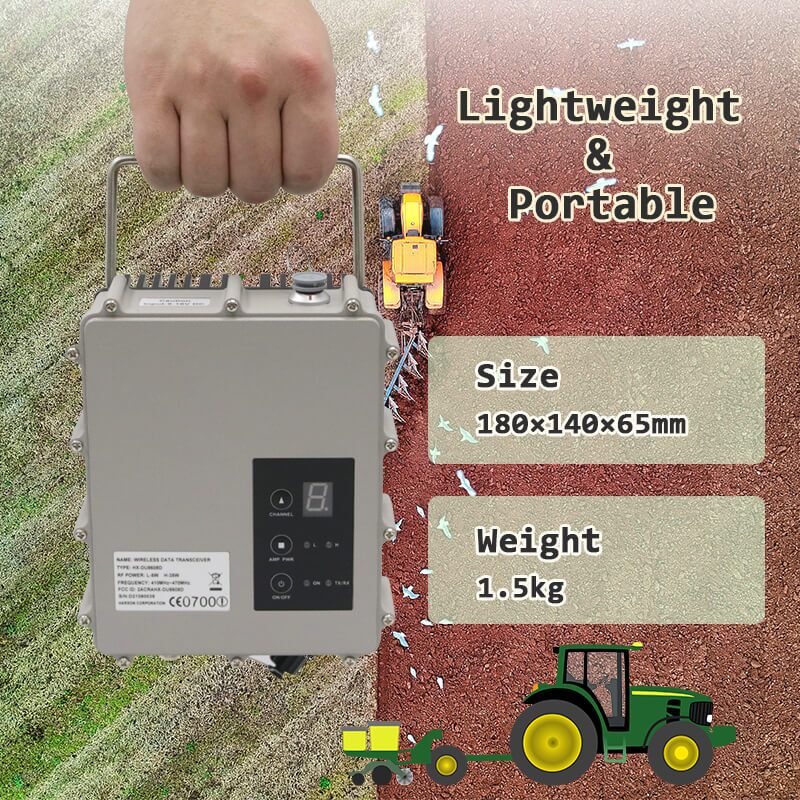

Size 180×140×65mm


Weight 1.5kg

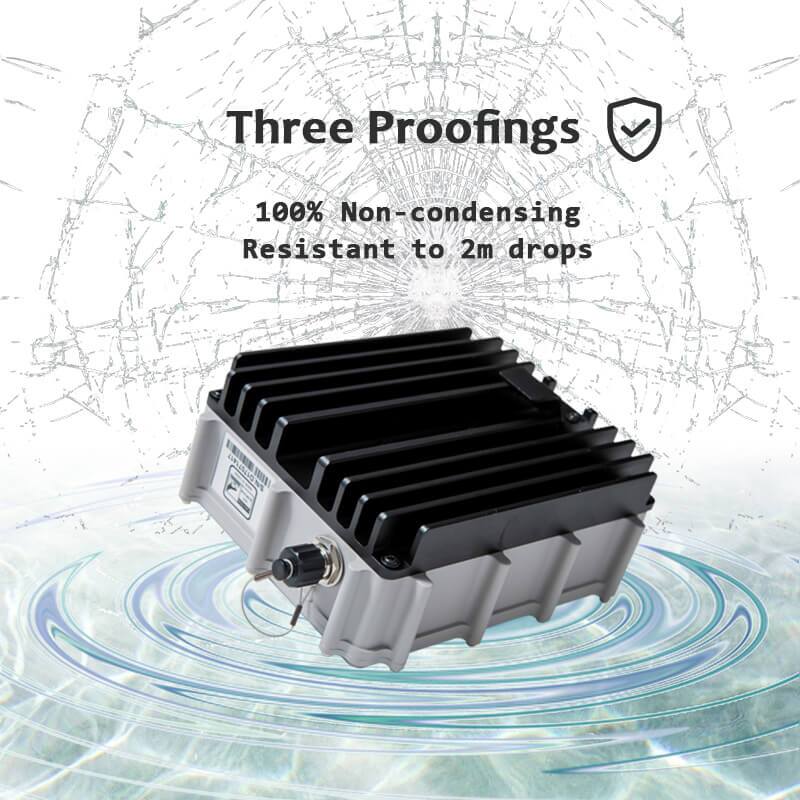

100% Non-condensing,Resistant to 2m drops


Application Field

It is suitable for various applications of tractors, harvesting machines, plant protection machinery, rice transplants and other agricultural vehicles.
It can be widely used for sowing, cultivating, trenching, ridging, spraying pesticide, transplanting, land consolidation, harvesting and other work scenarios.




D30 Radio station Product Features


60MHz Bandwidth Coverage 410-470 MHz bands

Advanced data link design for high performance over entire band.


Multi-function user interface

It was designed for easy mobile use in demanding field conditions.


Configurable Transmit Power

Support for 5W and 35W power switching.


Software-Derived Channel Bandwidth

Compatible with both 12.5 and 25 kHz radios.


High Environmental Capabilities

According to the 1P67 standard.


Repeater Function (optional)

In the same frequency or different frequency.
