JY305 Tractor GNSS Auto-Steering System

$5,900.00

Stars,100% Recommend

JY305 Auto-Steering System is an automatic steering system which uses high-torque motor control steering wheel. It integrates the advantages of convenient installation, largetorque, high precision, low noise, low heat and quick debugging.

gou

2.5cm accurate RTK auto-steer for tractor

gou

Highly integrated system

gou

10.1’’ touch screen control tablet

gou

Support CORS account for precision

Go to USA Amazon Store to Buy

What is a Tractor Autopilot System

The JY305 Auto-Steering System is an automatic steering system which uses high-torque motor control steering wheel.
It integrates the advantages of convenient installation, largetorque, high precision, low noise, low heat and quick debugging.
It is suitable for various applications of tractors, harvesting machines, plant protection machinery, rice transplanters and other agricultural models.

Product Advantage

  • lnstallation is convenient, fast, the system is free of debugging, installation can be completed
  • High accuracy to ±2.5cm

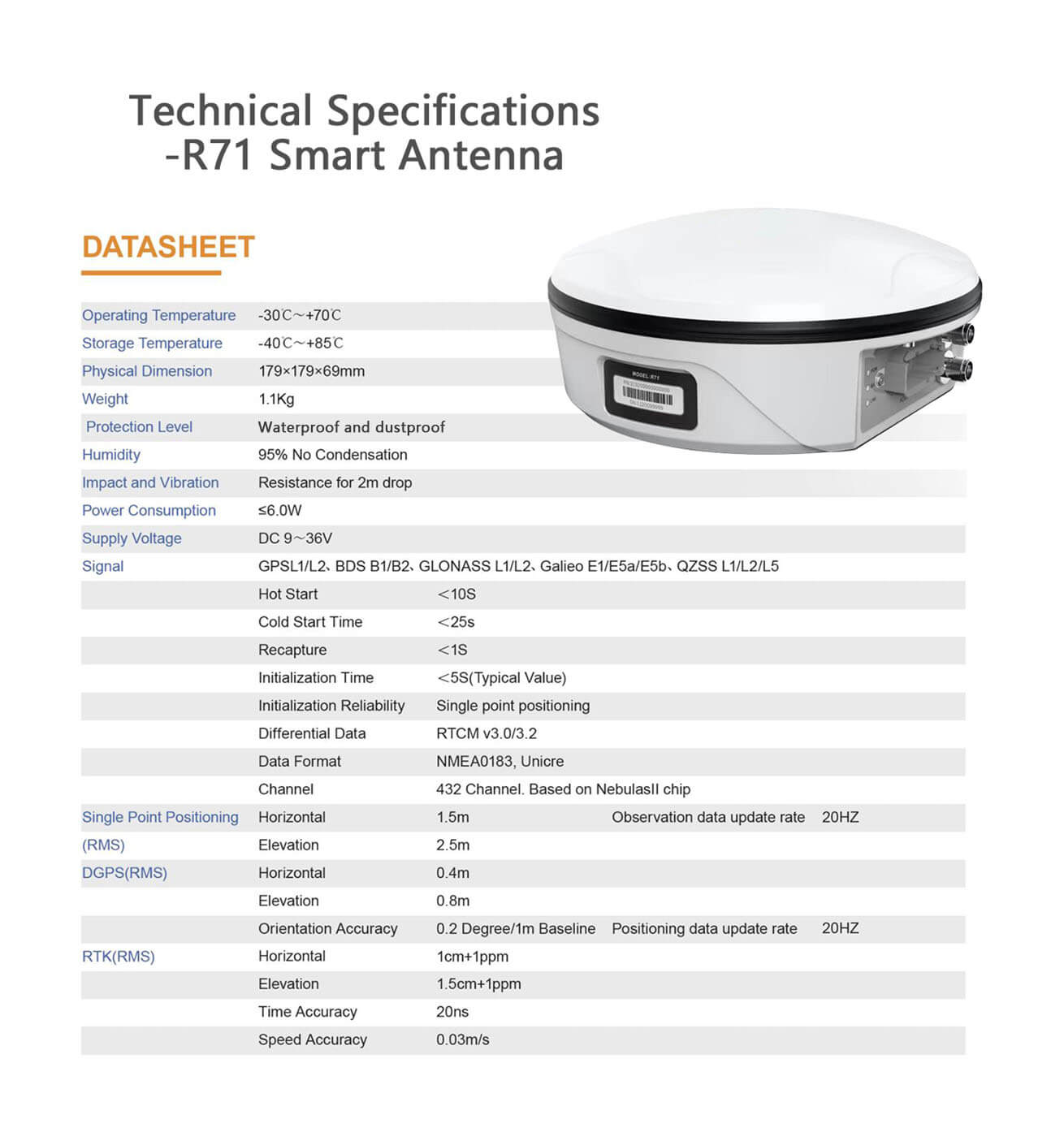

  • Supports multiple constellations & frequencies:
    GPS L1, L2;GLONASS L1, L2;BeiDou B1, B2;GALILEO E1, E5b;QZSS L1, L2;SBAS L1
  • Screen with error indicator light target,the accuracy of operation at a glance

Click to experience the simulator! Simulate autosteering operation.

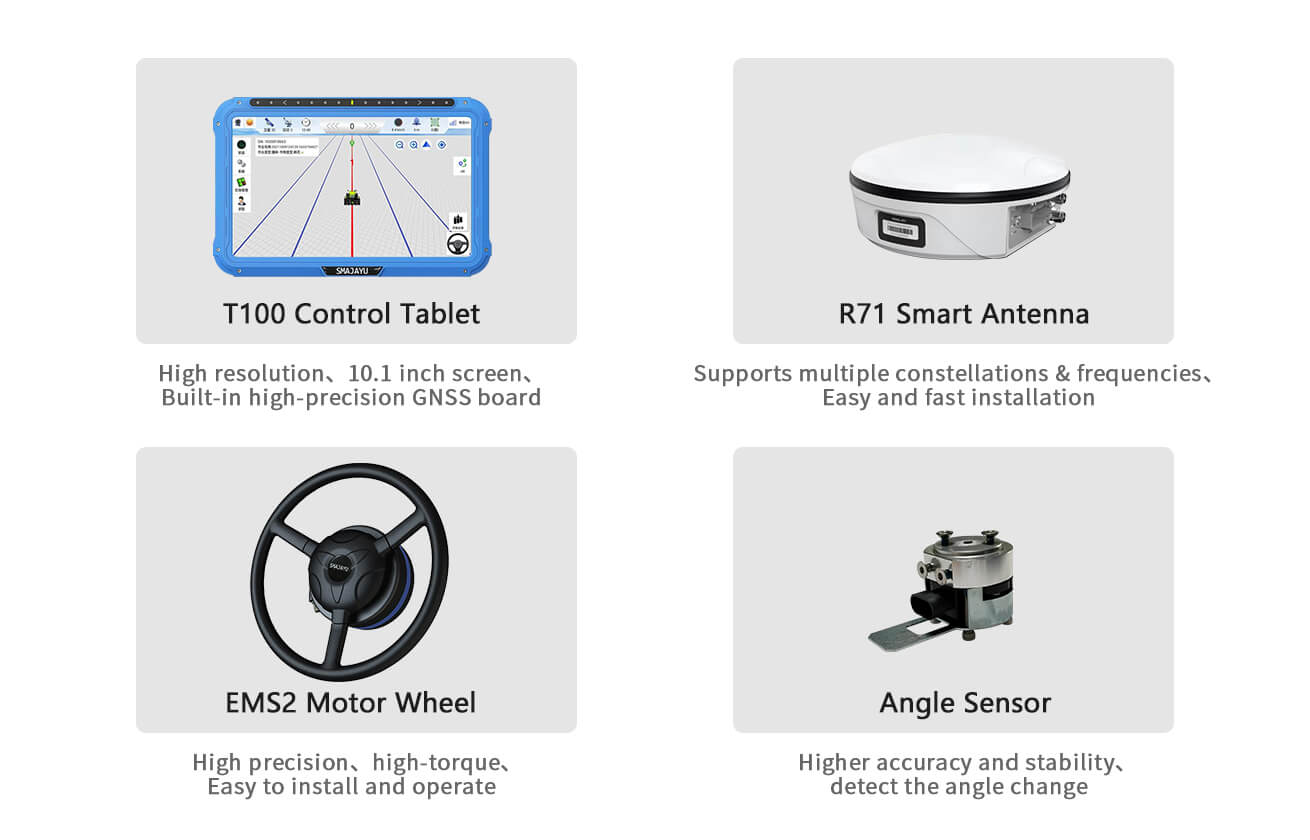

Main Accessories

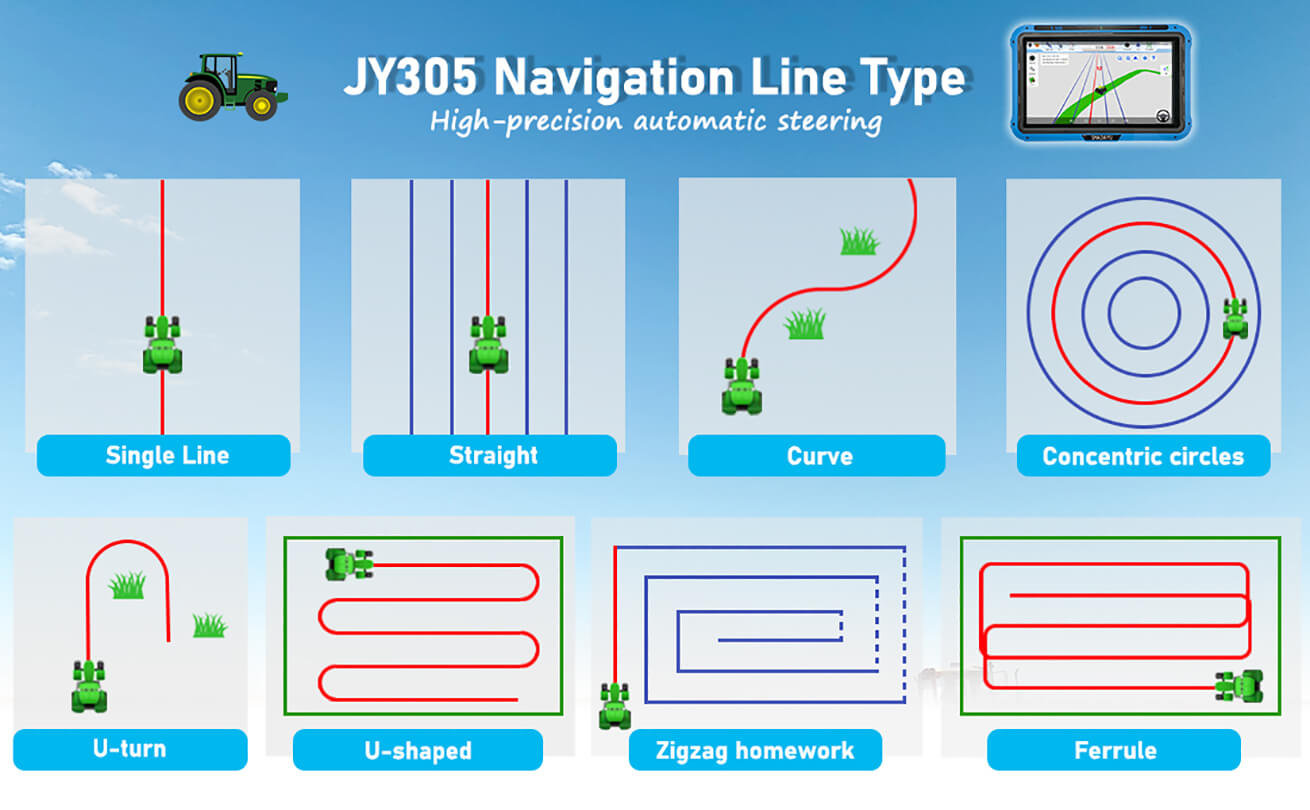

JY305 Navigation Line Type

Single Line , Straight , Curve/AB curve , Concentric circles , U-turn, U-shaped , Zigzag homework , Ferrule

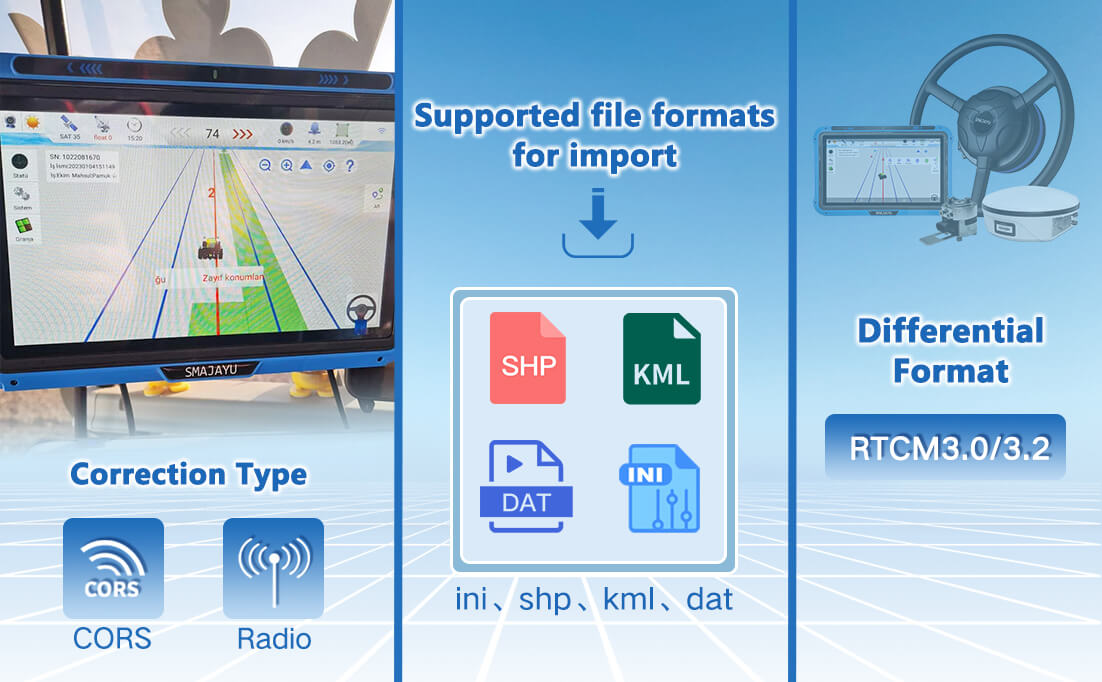

Correction type: CORS, Radio
Differential format: RTCM3.0/3.2
Supported file formats for import: ini, shp, kml, dat

Accuracy: 2.5cm with Correction



Application Field

It is suitable for various applications of tractors, harvesting machines, plant protection machinery, rice transplanters and other agricultural models.
It can be widely used for sowing, cultivating, trenching, ridging, spraying pesticide, transplanting, land consolidation, harvesting and other work scenarios.



JY305changjing



JY305 GNSS Auto-Steering System



The Smajayu JY305 Auto-Steering System is an automatic steering system which uses high-torque motor control steering wheel.

It integrates the advantages of convenient installation, large torque, high precision, low noise, low heat and quick debugging.

It is suitable for various applications of tractors, harvesting machines, plant protection machinery, rice transplanters and other agricultural models.

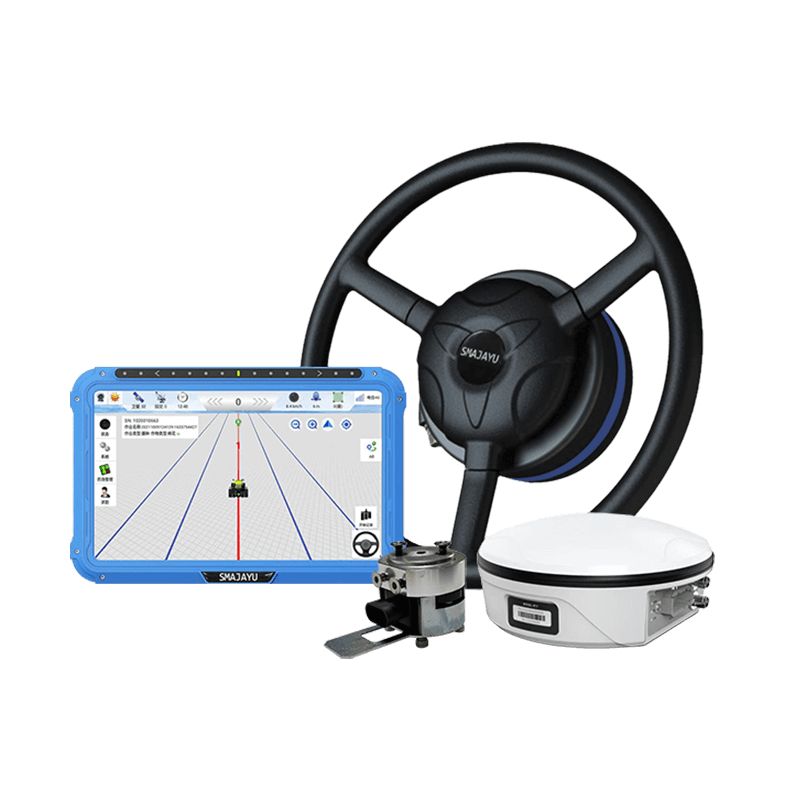

The system includes a control tablet integrated with a 4G modem, a steering wheel motor with a built-in

controller, and an angle sensor. It can be widely used for sowing, cultivating, trenching, ridging, spraying

pesticide, transplanting, land consolidation, harvesting and other work scenarios.



PRODUCT DESCRIPTION



T100 GNSS TABLET WITH INTUITIVE SOFTWARE

With 4G modem, Bluetooth and WIFI, it is ideal to connect with CORS or upload the working information to digital farm.

The 10.1-inch screen with multilingual software and clear graphic interface is suitable to handle all common farming operations.



EMS2 ELECTRIC MOTOR

The EMS2 integrates the electric motor and ECU into one rugged device which could output stable and high torque.

Easy to install and maintain makes it a reachable solution for all farmers. It works with low noise, low heat and high accuracy.



HD Camera

Vision-based Precision Farming to achieve real-time real monitor of working environment.



Easy Installation

The system is simple in composition, in single-antenna mode, easy to install, free of debugging, and can be operated in the field directly after installation.



Multiple Working Modes

It can work in straightlines, curves, harrowing, and other situations, and it's quite effective working at high-speed.



Stable Signal and Anti-interference

The RTK base station coverage is 40km. And the exclusive breakpoint battery life function can continue to work for ten minutes even if the network is disconnected.



Strong Scalability

Adding simple components can realize the mutual conversion of the land leveling system or intelligent spray system. Experience new features for free forever.
