SMA20 RTK Rover
$1,305.00
Stars,100% Recommend

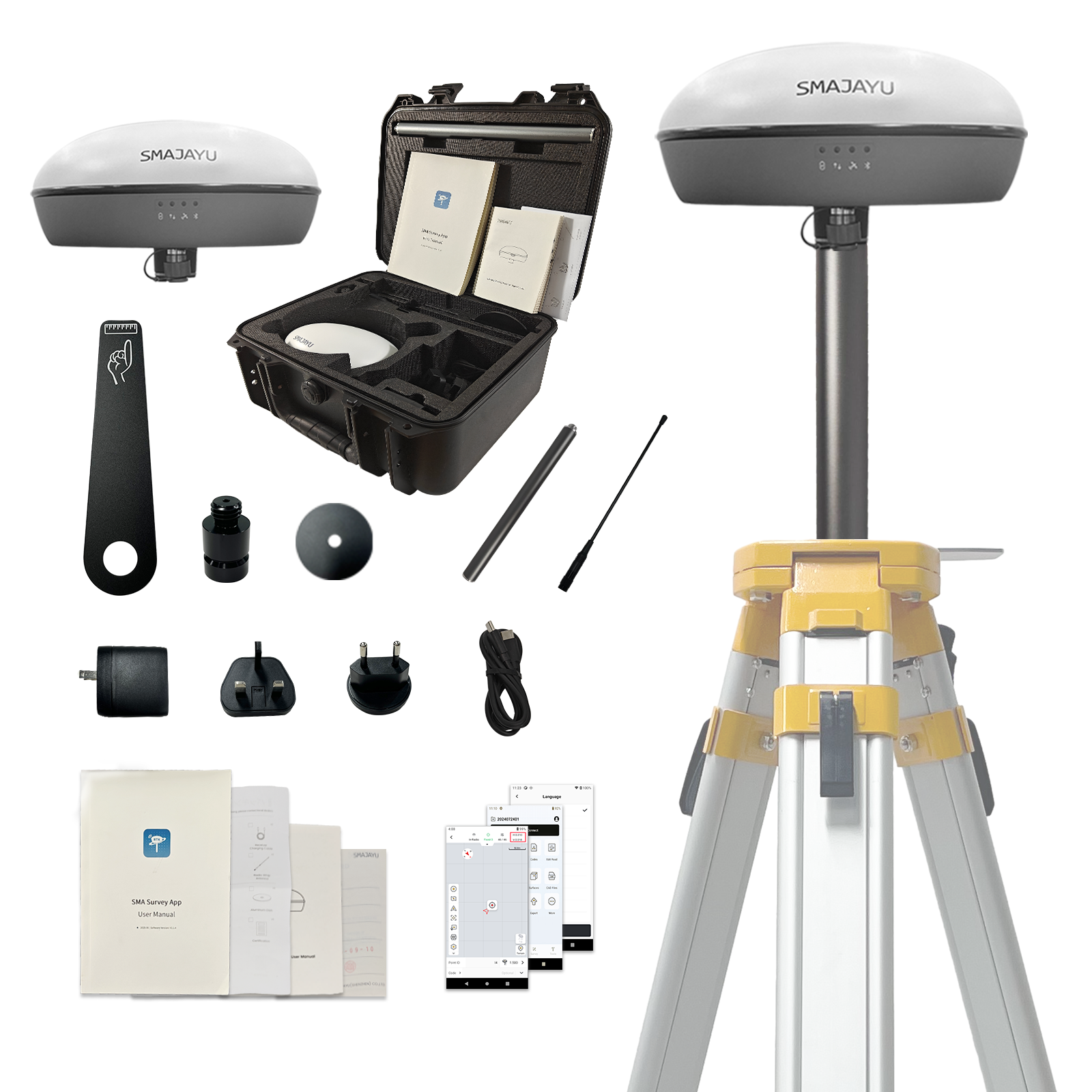

Advantages: ① Static and Base dual mode simultaneously works, PPK surveying and PPK calculation on “SMA SURVEY” APP ②NOAA certification: SMA20RTK is antenna name of NOAA registered ③Compatible with SMA26 static for PPK. ④PPP method: PPP method by Galileo HAS correction; ⑤Rinex logging enabled which can export rinex files directly to PC; ⑥Ntrip network connection supported by login a CORS account on “SMA SURVEY” APP Capability: Full-Constellation, one GNSS receiver free switching between rover and base station. ①1cm RTK accuracy and 0.25cm static accuracy ; ②30°tilt 2.5cm accuracy (horizontal),max. angle 60°tilt, ; ③long endurance battery:10hours for base under continuous work of each battery charge; ④2.5cm accuracy by PPK method; ⑤2.5cm RTK accuracy by Ntrip network station ⑥Able to starting with fixed point to make sure higher accuracy Multiple Frequency, Offers higher accuracy and Stability,Stronger Resistance,Faster Convergence time Differential technology: RTK, PPP, PPK,Static Supported protocols: TRIMATLK, TRIMMARK Ill, TT450S, TRANSEOT, Satel 3AS 4FSK Frequency: 900Mhz Packing list Set: One gnss receiver and surveying software for android device(phone,tablet,collector). Excludes collector and tripod Activated "SMA SURVEY" software included and free download.
- Benefit
- Specification
- Download
- Reviews
The SMA20 RTK GNSS Receiver developed by SMAJAYU has a built-in highprecision IMU (Inertial Measurement Unit) module. The SMA20 RTK GNSS Receiver has an additional IMU system consisting of a gyroscope and an accelerometer, and is mainly applied in tilt measurement. With the integration of GNSS and IMU, it supports surveying at any angle, and ensures a positioning accuracy of 3 cm within a tilt angle of 60°.
Post-processing accuracy is equivalent to RTK, up to cm level
Both versions of the receiver have built-in radio
Use the steps Description
-
SMA20 User Manual
9.47MB
-
SMA20 RTK User Manual
0.48MB
