Introduction to Bulldozer leveling guidance system:

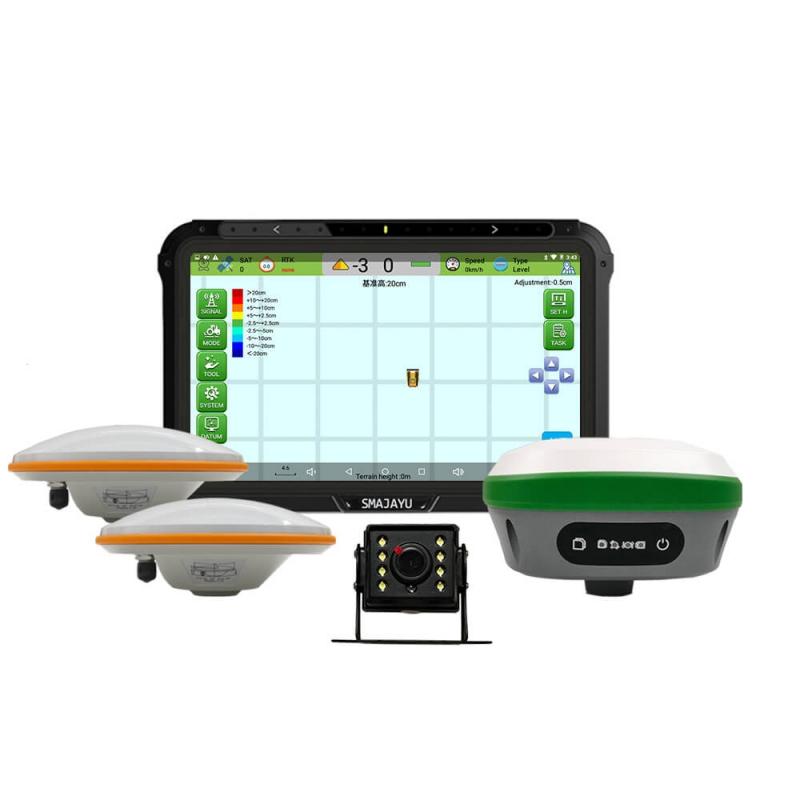

bulldozer leveling guiding system is a piece of equipment that helps operators utilize bulldozers to perform precise and accurate grading and levelling tasks. Offering the operator real-time feedback and direction during the levelling process helps increase efficiency, accuracy, and production. These levelling guidance systems are intended to aid heavy equipment operators in correctly and quickly levelling terrain. Positioning antenna mounted on a bulldozer blade. It enables the JYB20 bulldozer guidance control system to determine the height of the current blade in real time. By fully calculating the height difference between the display and the reference plane, the display terminal can guide the operator to control the lift. Improve the efficiency of the entire process. The device can provide feedback and directions to the user. Help them level surfaces quickly and accurately by combining sensor and GPS technology.

How a leveling navigation system for bulldozers operates?

On building or earthmoving projects, a bulldozer levelling system increases the operator's capacity for precision grading and levelling operations, lowers the need for human adjustments, and boosts overall productivity. Additionally, it helps reduce human error because it is built to immediately alert the operator if an area is out of level.

Sensors and Positioning:

The system uses GPS (Global Positioning System) technology to track the Bulldozer's position and movement around the job site. It determines the machine's precise location by receiving satellite signals using GPS receivers placed on the Bulldozer.

Data collection:

Inclinometers, gyroscopes, and distance sensors are just a few devices the Bulldozer guiding system uses to gather data. These sensors follow the movement of the Bulldozer's blade and measure its slope, tilt, and elevation.

Digital Terrain Models (DTMs):

The technology uses digital terrain models (DTMs), which are accurate 3D depictions of the topography of the job site. The system can produce these models on demand utilizing acquired data or developed in advance using survey data.

Operator Interface:

The User-friendly interface provided by the levelling guiding system to the operator is often shown on a screen in the Bulldozer's cabin. The interface displays real-time information, including the blade's orientation, location, and intended grade or slope.

Real-Time Guidance:

The technology gives the operator real-time guidance based on the Bulldozer's position, orientation, and intended grade. It may use visual cues to indicate where the blade has to be raised or lowered to reach the required grade, such as color-coded maps or arrows on the screen.

Automatic Control:

The guiding system may also be connected with the Bulldozer's hydraulic controls in cutting-edge bulldozer levelling systems. This lowers the operator's burden and improves precision by enabling the system to alter the location and angle of the blade automatically.

Data logging and analysis:

The system may log and store information about the levelling activities, such as the location of the Bulldozer and its blades, as well as other pertinent details. The analysis, quality assurance, and recording of this data are all possible uses.

Why do people install JYB20 Bulldozer Leveling Guidance System?

A technical advancement that has gained favor in the construction sector is the JYB20 Bulldozer Guidance System. This cutting-edge device aims to improve the precision and effectiveness of bulldozer operations when performing levelling and grading chores. In this answer, we will go over the main factors influencing people's decisions to install the JYB20 Bulldozer Guidance System in depth.

Accuracy of leveling operations:

The JYB20 Bulldozer Levelling Guidance System greatly increases the precision of levelling operations. Traditional bulldozer operations place a significant emphasis on the knowledge and expertise of the operator, which can occasionally result in inconsistent outcomes. However, the leveling guidance system provides the operator with precise measurements and real-time data. enabling them to perform correct and consistent leveling. The system uses cutting-edge sensors, GPS technology, and digital displays to guide the operator. to make sure the blade is at the correct height and slope. Better work is produced due to enhanced precision, lessening the need for revisions or corrections.

Time and money savings:

The time and money savings provided by the JYB20 Bulldozer Levelling System are another significant factor. The technology promotes quicker project completion by offering accurate and effective leveling operations. Operators can operate more swiftly and confidently when they know they have access to reliable information. The method also reduces material waste by assuring the best possible use of resources, such as soil or gravel. In addition, fewer reworks or corrections result in time and cost savings because they don't require as much labor or resources.

Improving safety standards:

Safety is of utmost importance in the construction sector, and the JYB20 Bulldozer Levelling System helps raise the bar on safety. By giving the operator immediate warnings and alarms, the system aids in preventing mishaps and injuries. For instance, when the Bulldozer approaches a dangerous slope or runs into subsurface impediments, it can alert the operator. The technology reduces the likelihood of accidents and promotes a safer workplace by warning operators of possible hazards and enabling them to take prompt remedial action.

Enhances productivity and efficiency:

Additionally, the JYB20 Bulldozer Leveling System improves efficiency and production on building sites. The system streamlines the grading procedure by automating several operations that would normally need manual calculations and modifications. The system preserves the required grade characteristics throughout the process after the operator has selected them. With less operator fatigue thanks to automation, operators may operate for longer periods without sacrificing precision.

User-friendly interface and ease of operation:

The JYB20 Bulldozer Guidance System is renowned for its simple operation and user-friendly interface. It can be used by experienced operators as well as those just learning how to operate a bulldozer. Because of its simple and intuitive design. The system provides clear visual assistance through its digital display. Enable users to evaluate data and take appropriate action quickly. The system may also be altered to fit project requirements, offering flexibility and adaptability to grading assignments.


An idea for a bulldozer levelling guidance system is presented in this article. The system is built on a GPS sensor and a collection of guiding algorithms. The design is then tested in a simulated setting to see how well it performs. Optimizing farmer productivity, lowering input costs, raising farm revenue, enhancing the farm environment, and boosting farm output are the key objectives of SMAJAYU intelligent agriculture. We are searching for dealership opportunities for auto-steering precision systems in agricultural countries and areas to help with the agriculture industry's growing expansion.
