SMA26 PRO RTK+tripod
$3,049.00
Stars,100% Recommend

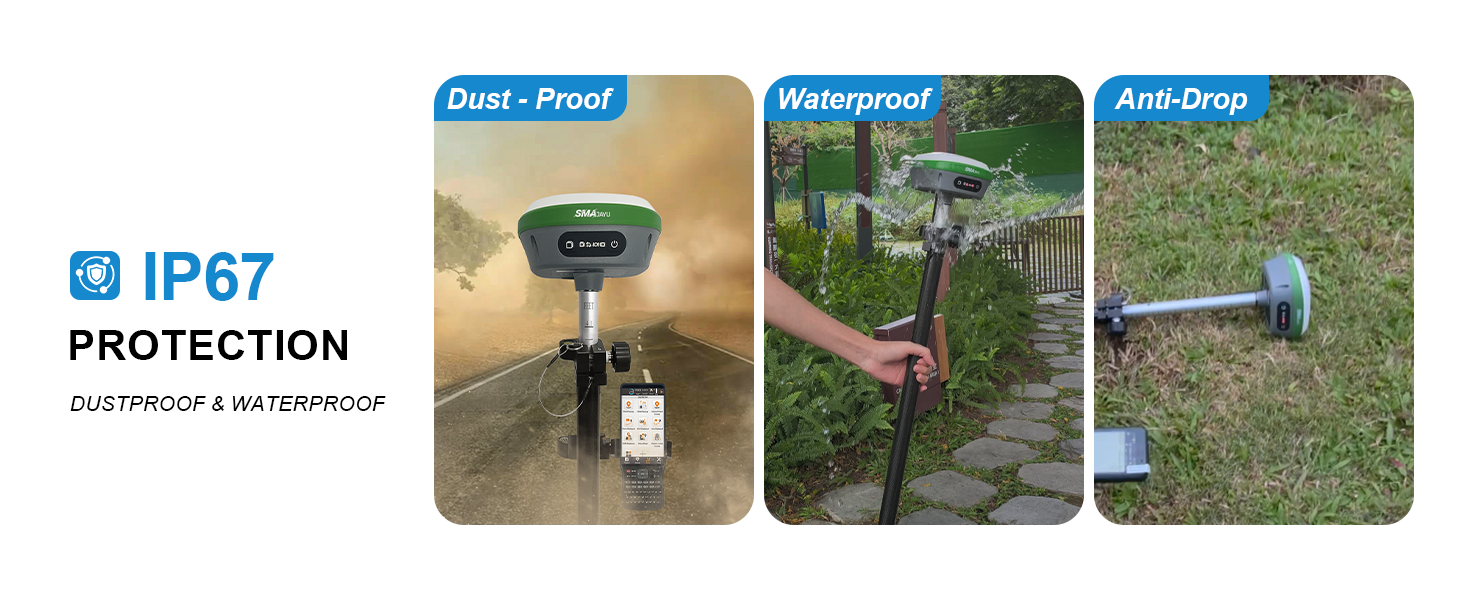

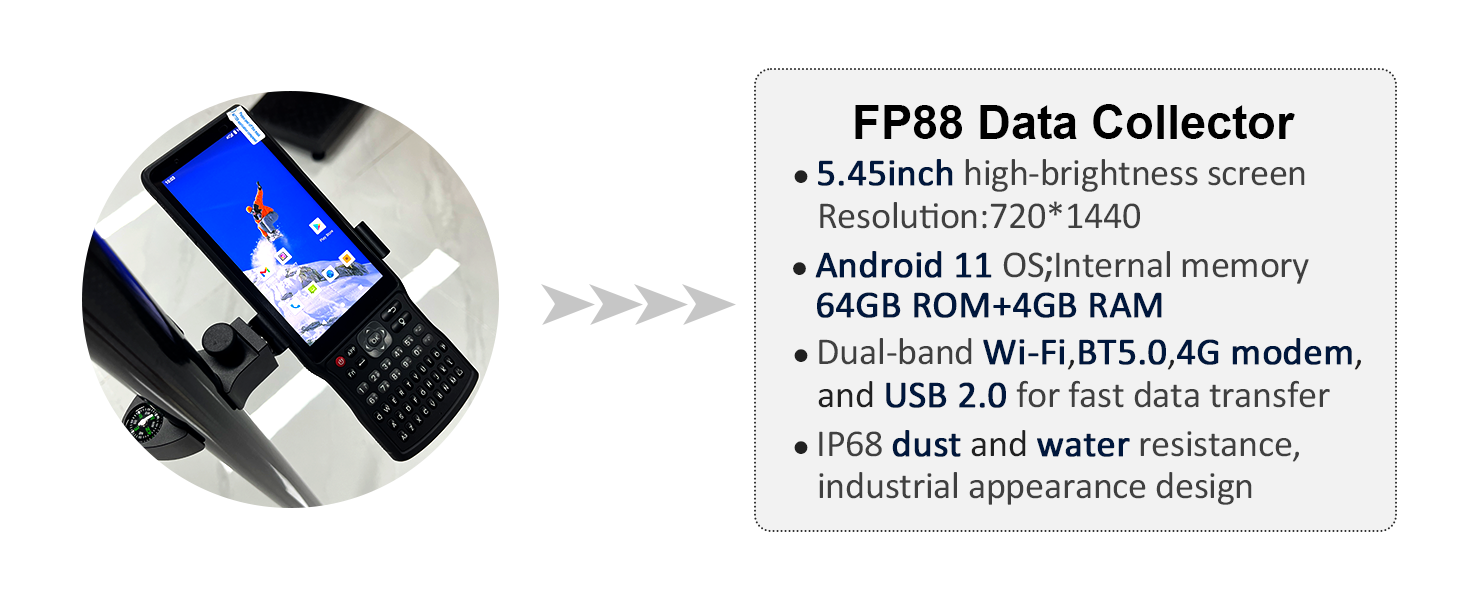

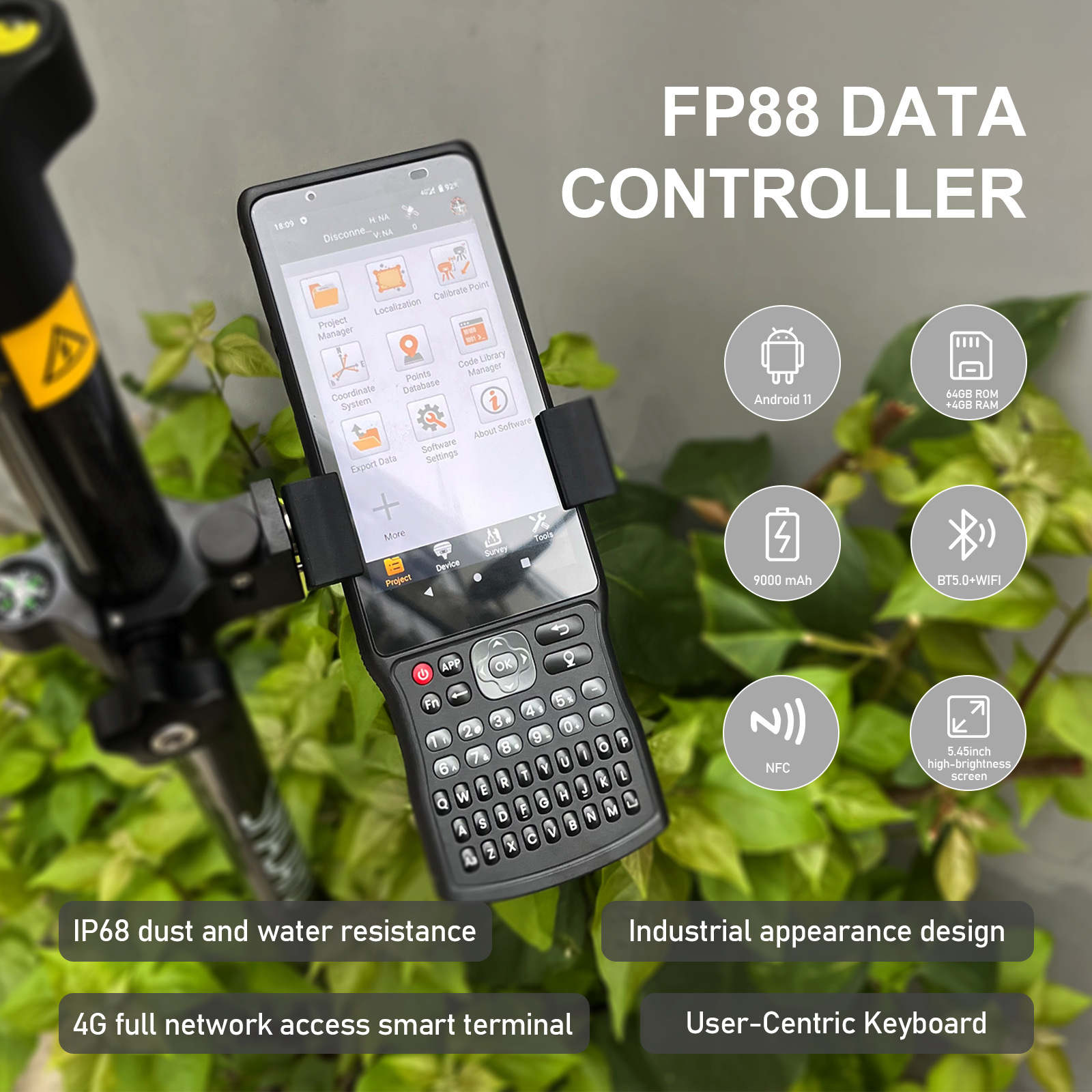

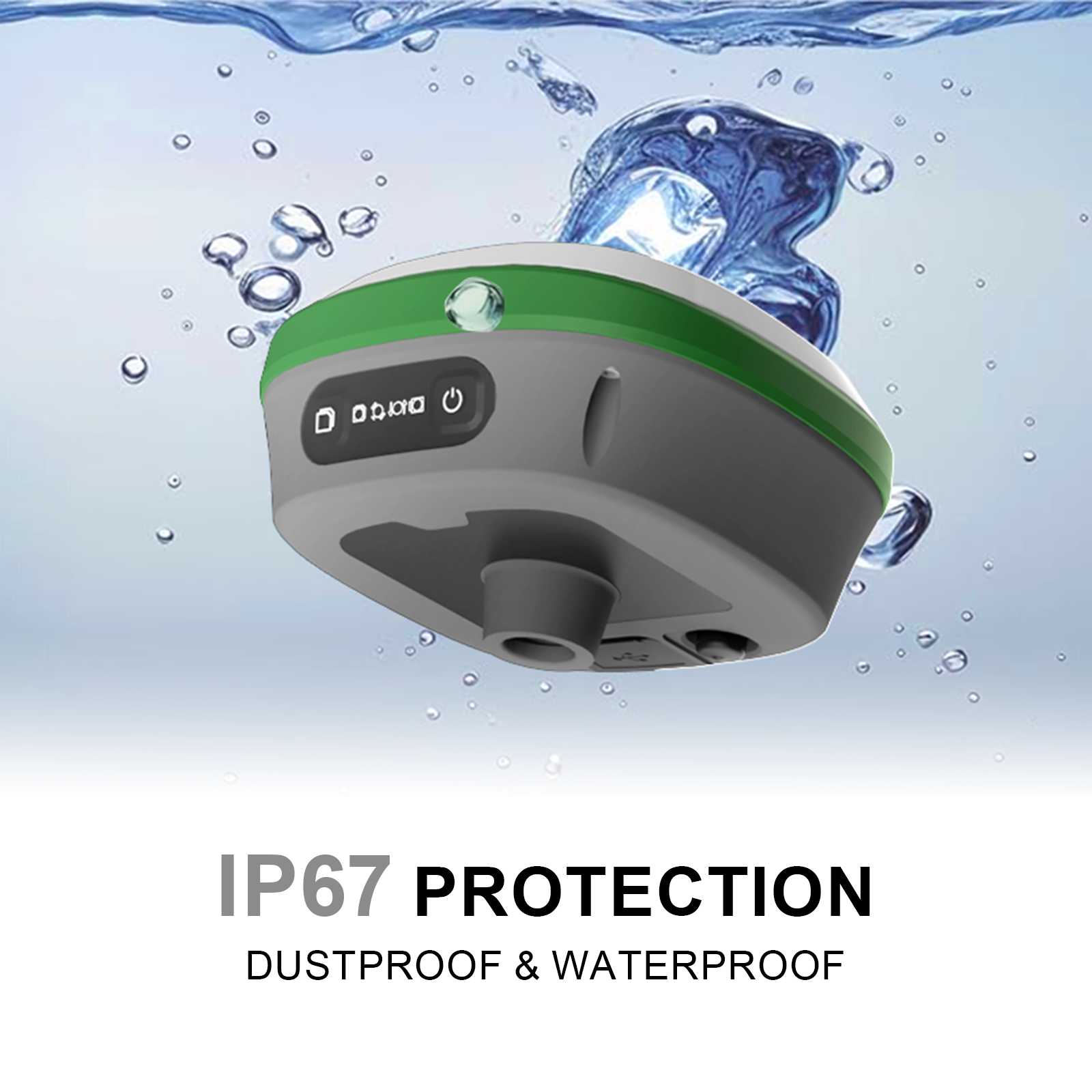

【Tilt Compensation】 2.5cm tilt accuracy (≤30°) with no calibration needed, enabling precise measurement in hard-to-reach areas 【Smart Handheld Collector:】Android 11 handheld with 5.45" HD screen, dual SIM, 9000mAh battery, NFC, IP68 protection, dual-band RTK support, and 13MP rear camera 【High-Precision GNSS System】Includes SMA26 RTK receiver + Android handheld with survey software. Achieves ±8mm RTK horizontal accuracy and 2.5cm tilt measurement precision 【All-in-One Integration】Built-in Bluetooth, UHF radio, 4G, WiFi, IMU, antenna, and 32GB storage. Easily switch between base station and rover mode with one device 【Rugged & Reliable】IP67 waterproof, dustproof, 2m drop resistance. Operates in -45℃ to +75℃. Up to 20 hours rover use with 10000mAh battery

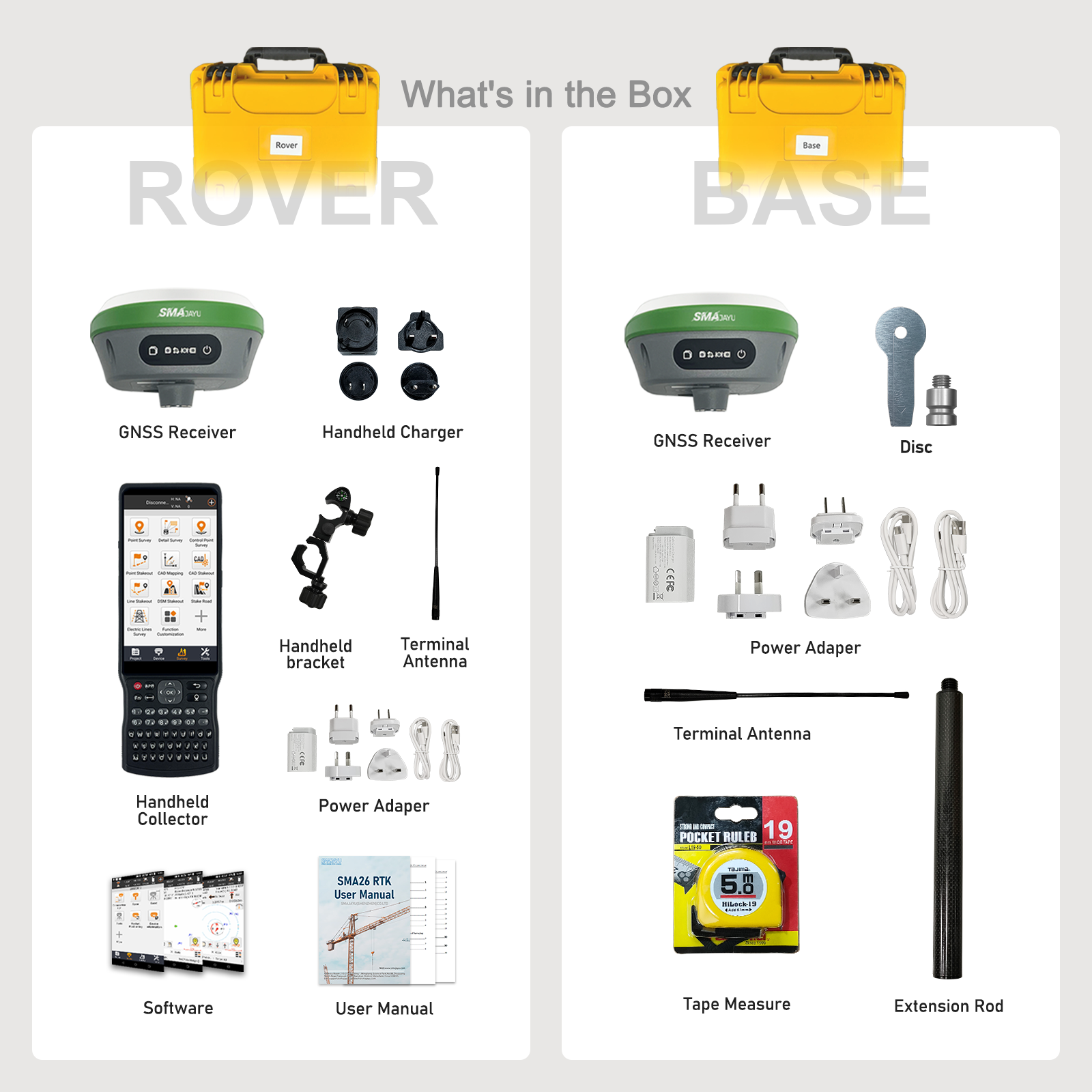

【What is it】SMA26 PRO RTK GPS Surveying System with IMU, consists of SMA26 rover and base station and Collector with Surveying software. Double SMA26 RTK GNSS receiver included, which enables the system to pinpoint measurement and reference locations in a timely and accurate manner. This RTK Survey system is mainly for construction and geodetic surveys or layout planning.

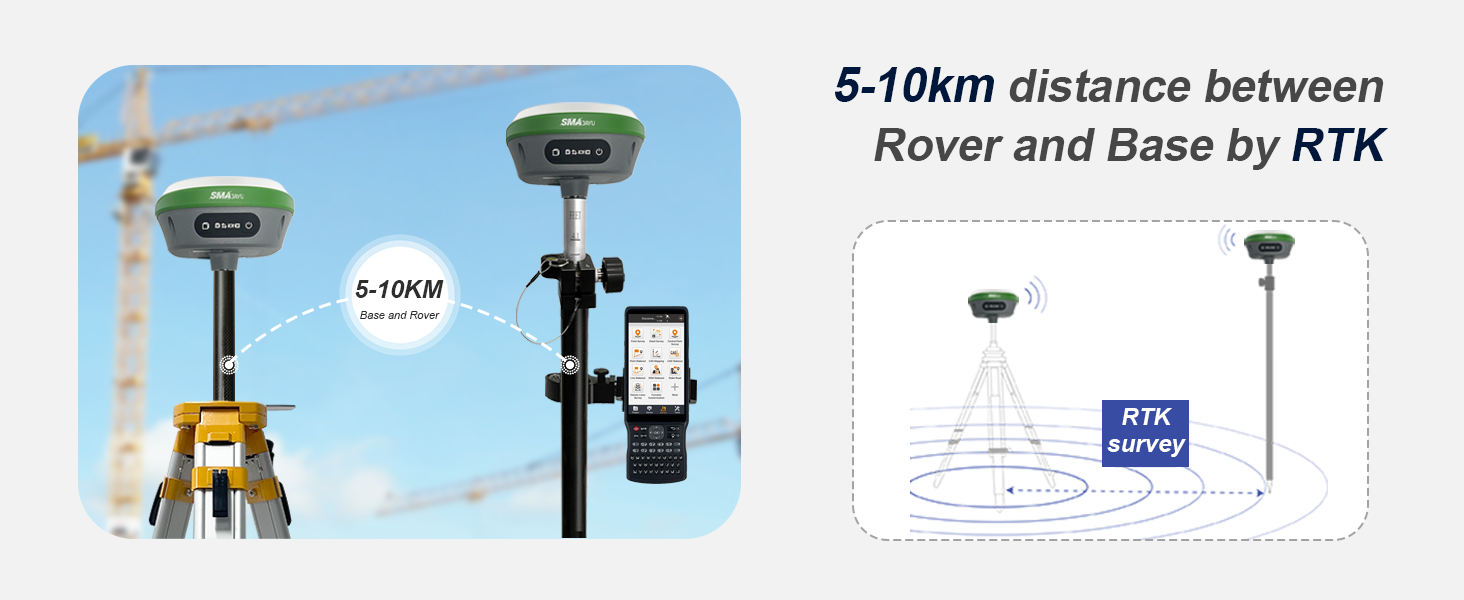

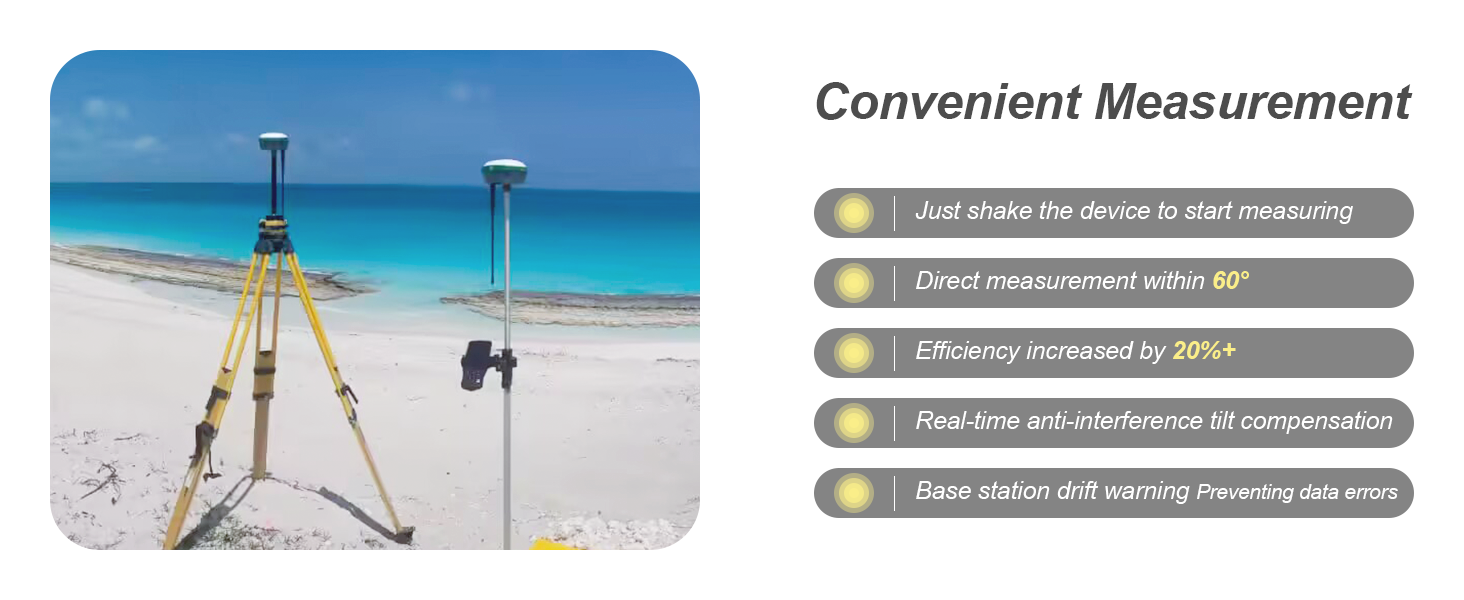

【How to work】step 1:Connect collector with one SMA26 by BT to set as base, wait for 3minutes(important) , step2:stop connection with base, then connect collector with other SMA26 to set as rover. Step 3: Set same wireless protocol "CCS" and channel on rover and base till fixed. Then you can start parameter setting and surveying job.

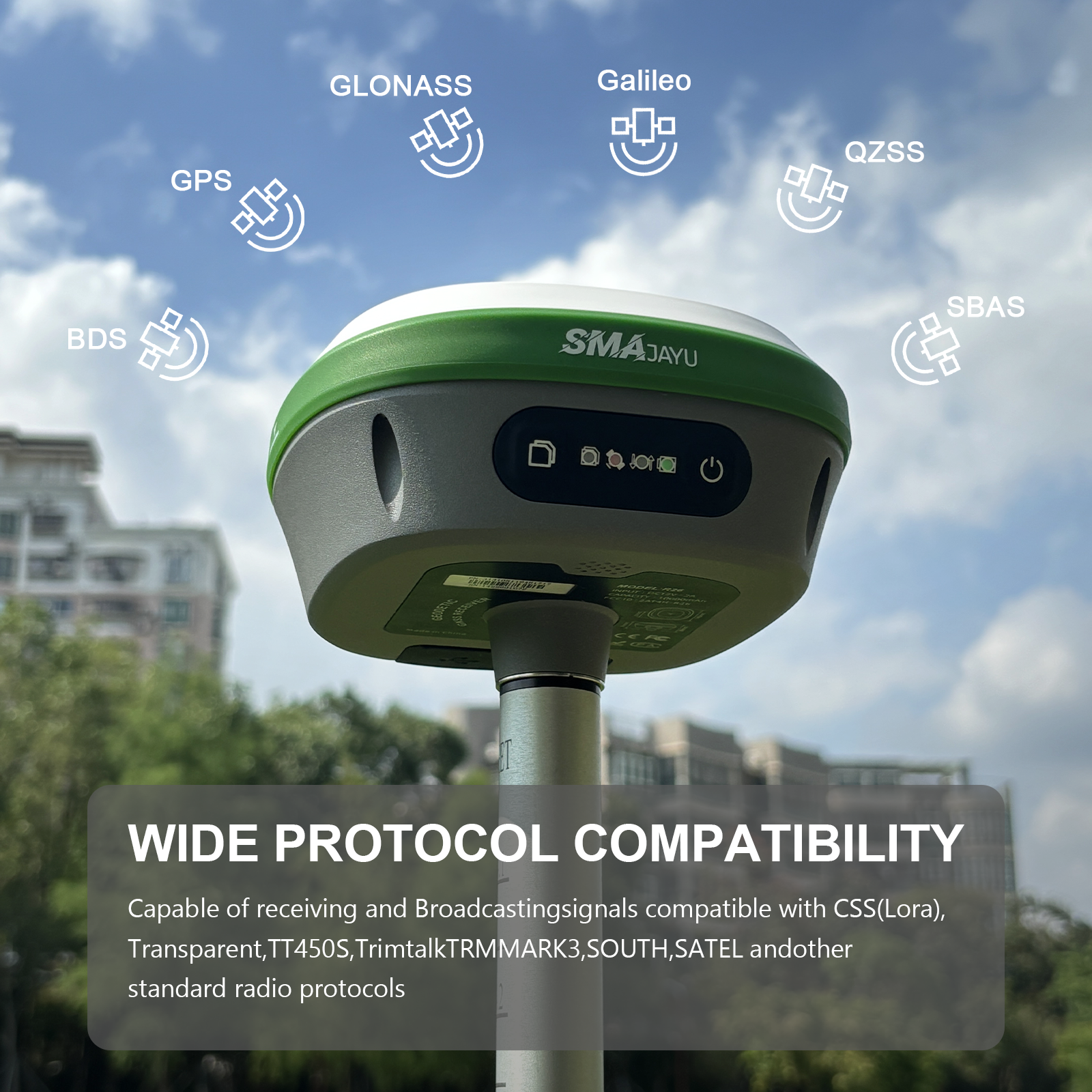

【Where to use】 Accuracy RTK GNSS receiver SMA26 PRO can meet various surveying & engineering, such as surveying and mapping engineering, geographic information, engineering surveying, mine surveying etc. Fully support GPS, GLONASS, Galileo systems, adapt to a variety of complex and harsh environments
【Why to use】 Built-in BT, wireless , storage, positioning,inertial navigation, antenna and other modules to meet various needs of measurement work. Built-in low-power transceiver integrated wireless module and IMU. It employs a base station and rover with the (GPS) to attain centimeter-level precision measurement. Collector with professional instruction,High precision, low power consumption, small size, easy to carry and operate.
【RTK Software】RTK Surveying software installed in Handheld(Collector) and Permanently Valid. Software download link is always available for user to update the latest software.
【Tech Support】For sure buyer can ontact seller tech team for support to make sure the equipments 100% work well.Please refer to the PDF electronic manual in the webpage.Please email for technical support or Search for SMAJAYU on YouTube.
- Benefit
- Specification
- Download
- Reviews

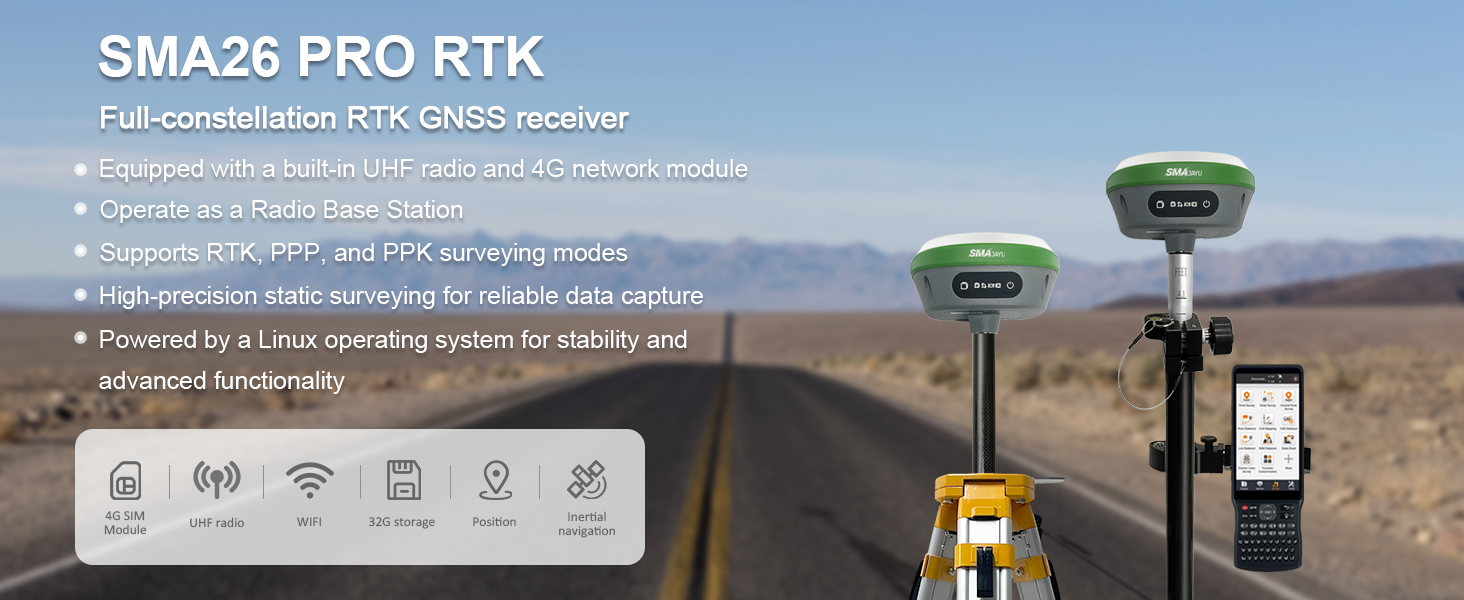

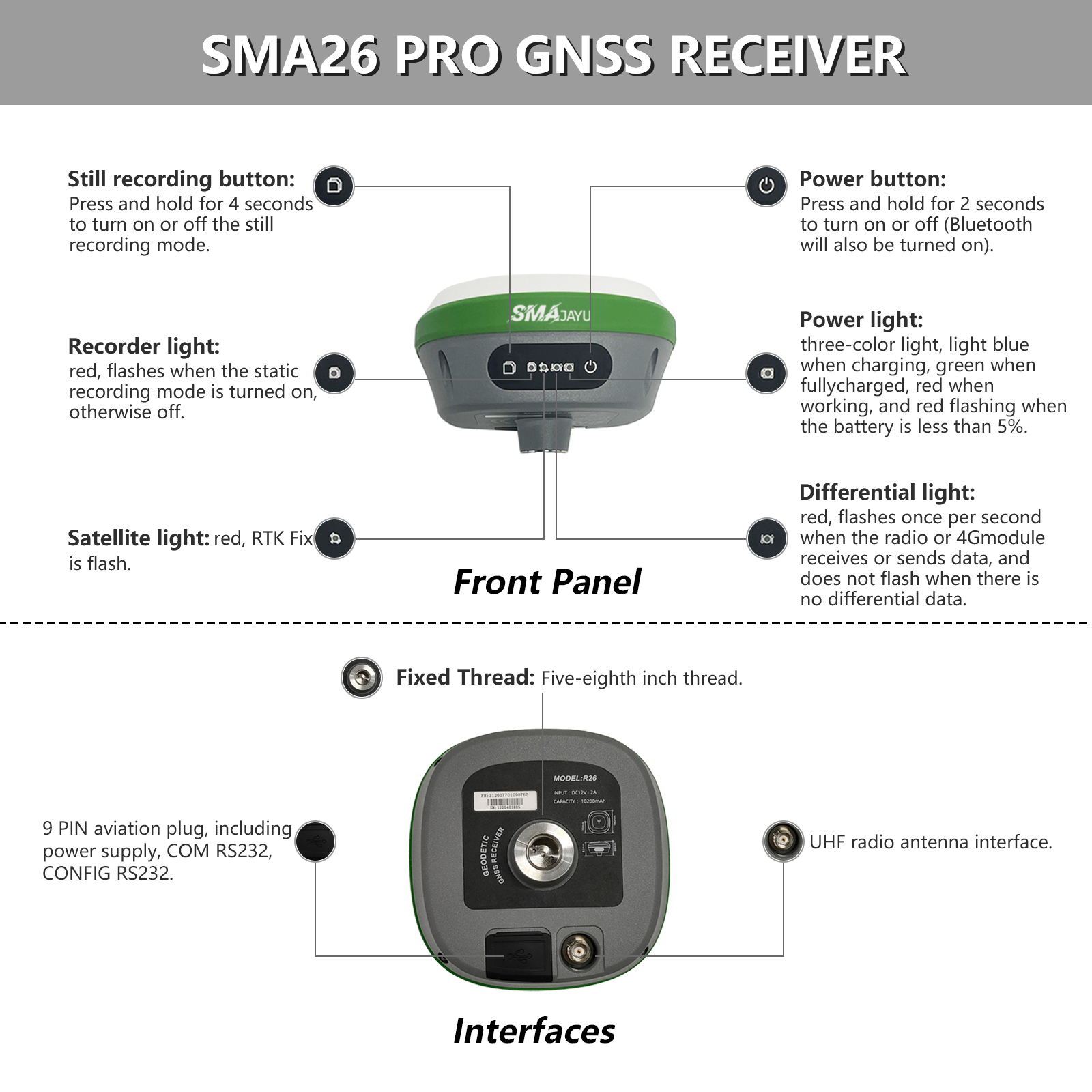

SMA26 PRO Survey System
The SMA26 PRO survey system is a survey system including Handheld; it integrates the advantages of high precision, low power consumption, small size, convenient and fast portability and operation. It can meet various engineering needs of surveying and mapping industries. The system consists of two SMA26 PRO GNSS receiver and a Handheld, Handheld with surveying software. The software interface is clear, easy to learn and understand, convenient and practical, making work easier, faster and more efficient. It can be widely used in surveying and mapping industries such as land, construction, forestry, roads, electric power, water conservancy, oil pipelines, etc.

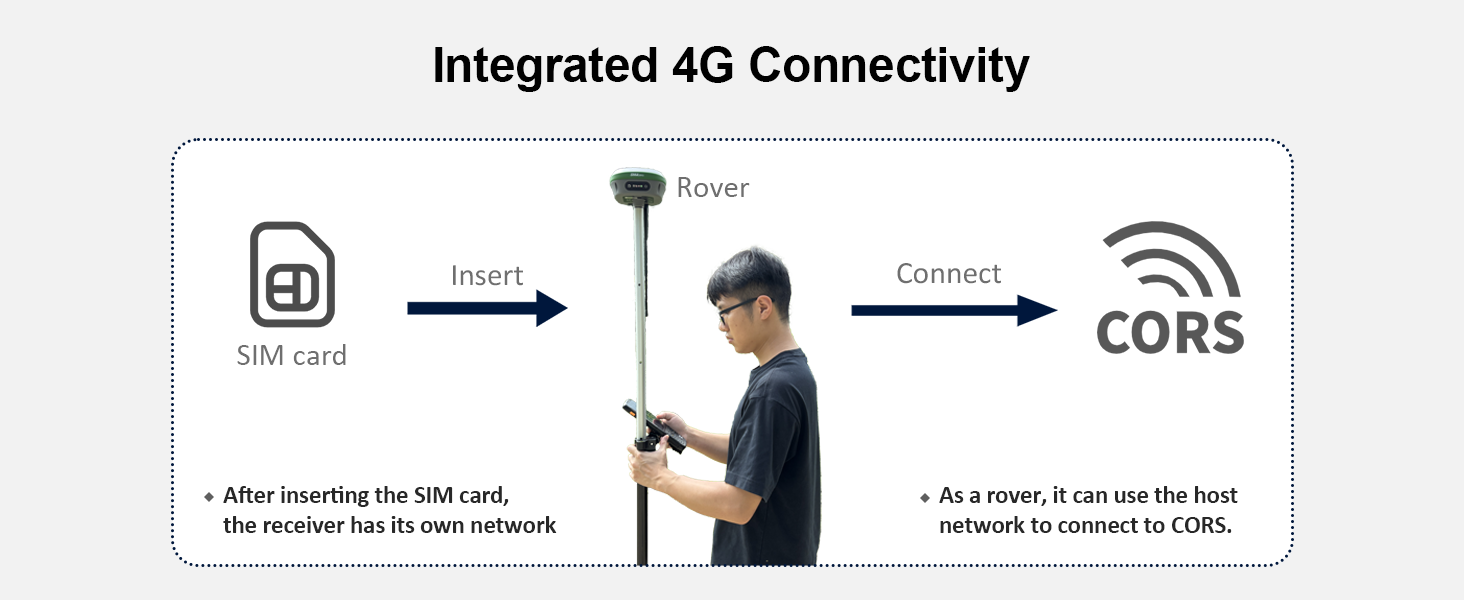

New 4G RTK
Plug in the SIM card and use it immediately. Dual mode integrated design, supporting direct connection to CORS real-time measurement or self built CORS benchmark station networking, efficient and accurate, and flexible adaptation to diverse surveying and mapping scenarios.
NEW LINUX OPERATING SYSTEM

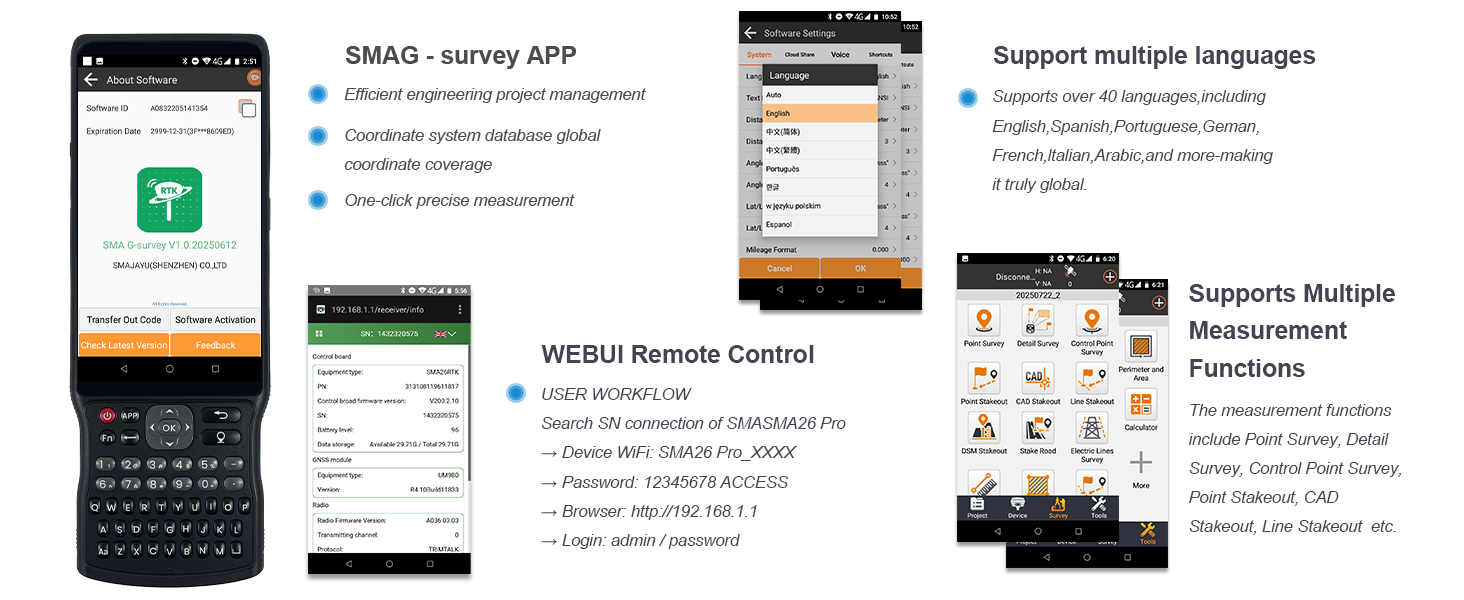

Linux intelligent operating system, supporting voice playback, 4G, WEBUI, and WIFI connection. You can easily access and set up your device by opening a website and viewing its information. Experience hassle-free connectivity with our user-friendly interface. Advanced voice interaction capabilities and a convenient self-test function make device maintenance easy.
ALL-IN-ONE DESIGN

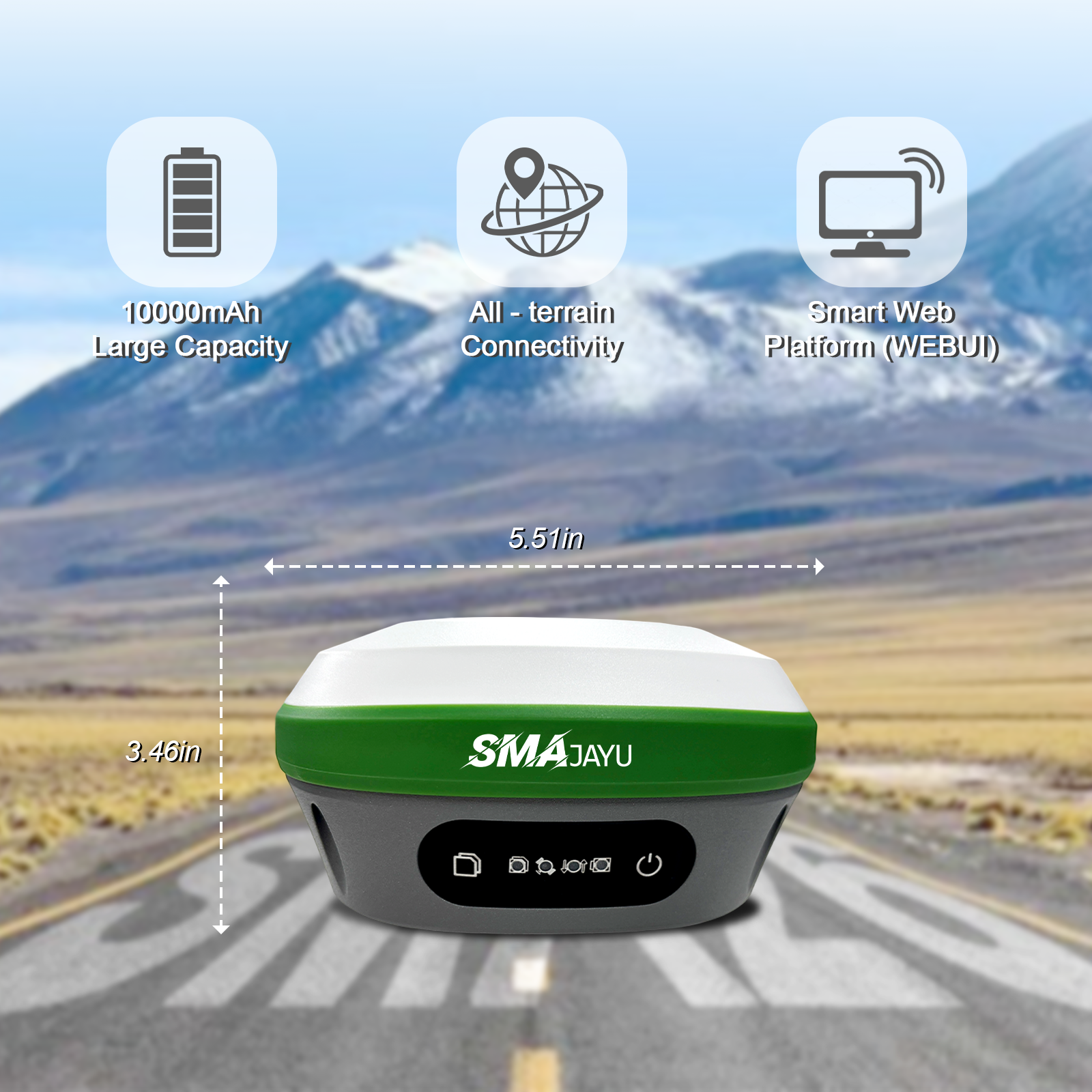

The device has built-in Bluetooth, radio, WIFI, storage, positioning, inertial navigation, and antenna modules. It can switch between base station mode and rover mode for automatic switching between the mobile and base station.

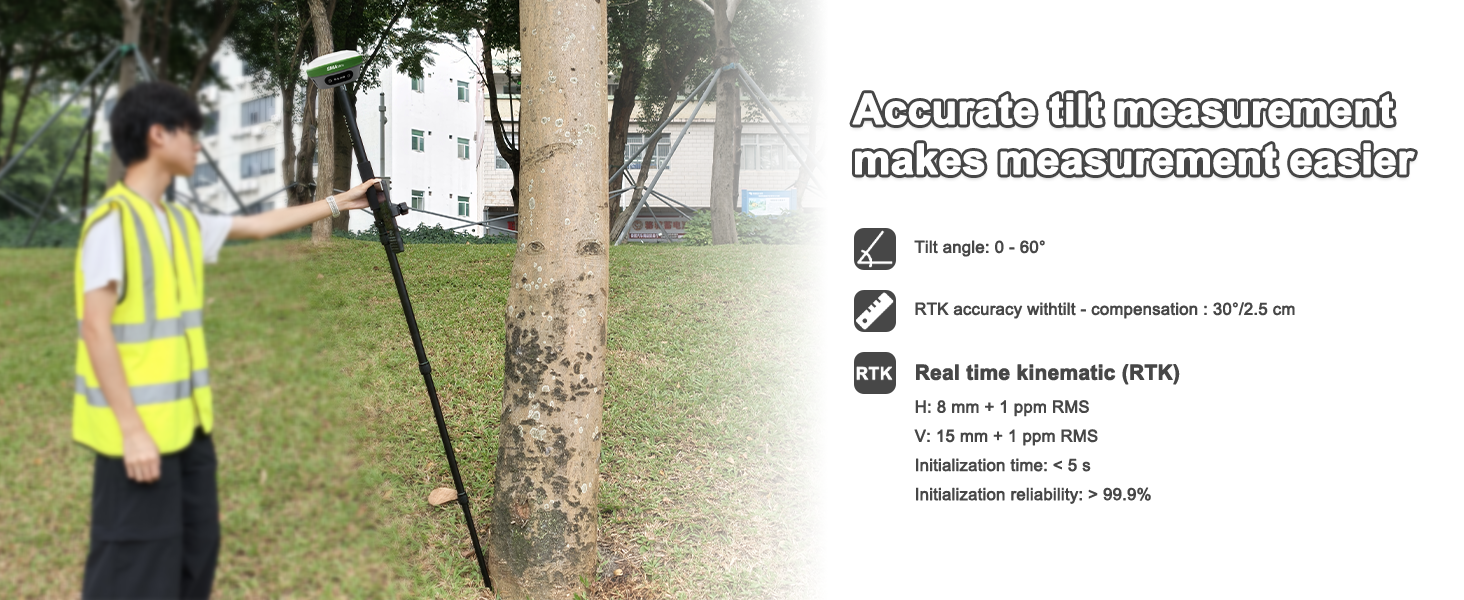

TILT COMPENSATION FOR HARD-TO-REACH MEASUREMENTS
The NebulasIV GNSS SoC integrates RF, baseband, and high-precision algorithms. It can track 40+ satellites for accurate positioning in complex environments. The built-in IMU module doesn’t require calibration and achieves a 2.5cm tilt measurement accuracy (≤30°) with simple initialization.
